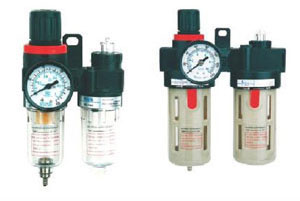

Filter Regulator Lubricator Unit AB Series (Two-union)

Order code

AFC

2000

M

F.R.L unit

AFC: AC series

AFC: BC series

Port size

1500:1/8"

2000:1/4"

3000:3/8"

4000:1/2"

Drain type

Nil: semi-automatic drain

M: manual drain

A: auto drain

Specification
Model		AFC1500 AFC1500A AFC1500M	AFC2000 AFC2000A AFC2000M	BFC2000 BFC2000 A BFC2000 M	BFC3000 BFC3000A BFC3000M	BFC4000 BFC4000A BFC4000M
component	Filter-regulator	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
	lubricator	AL1500	AL2000	BL2000	BL3000	BL4000
Port size RC(RT)		1/8"	1/4"	1/4"	3/8"	1/2"
Fluid		Air
Proof pressure		0.5-8.5kgf/cm²
Max operating pressure		9.5kgf/cm²
Ambient & fluid temperature		15.0kgf/cm²
Nominal filtration rate		5-60^oc
Recommended lubrication		40um
Adjustable pressure range		Turbine no.1oil (ISO VG32)
Drain bowl capacity		15cc		60cc
Oil bowl capacity		25cc		90cc
Weight(kg)		0.5		0.7
Main parts material	Body	Aluminum alloy
	Bowl	PC
	Bowl guard	AFC 1500-AFC2000:without BFC2000-BF4000:with（plastic）
