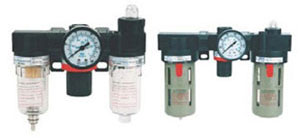

Filter Regulators Lubricators Unit AB Series (Three-union)
|
Order code |
||
|
AC |
2000 |
M |
|
F.R.L unit AC:AC series BC:BC series |
Port size 1500:1/8" 2000:1/4" 3000:3/8" 4000:1/2" |
Drain type Nil: semi-automatic drain M: manual drain A: auto drain |
|
Specification |
||||||
|
Model |
AC1500 AC AC |
AC2000 AC AC |
BC2000 BC BC |
BC3000 BC BC |
BC4000 BC BC |
|
|
component |
Filter. |
AF1500 |
AF2000 |
BF2000 |
BF3000 |
BF4000 |
|
regulator |
AR1500 |
AR2000 |
BR2000 |
BR3000 |
BR4000 |
|
|
lubricator |
AL1500 |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
|
|
Port size RC(RT) |
1/8" |
1/4" |
1/4" |
3/8" |
1/2" |
|
|
Fluid |
Air |
|||||
|
Proof pressure |
15kgf/cm2 |
|||||
|
Max operating pressure |
0.95Mpa(9.5kgf/cm2) |
|||||
|
Ambient & fluid temperature |
5-60oc |
|||||
|
Nominal filtration rate |
40um |
|||||
|
Adjustable pressure range |
0.5-0.8kgf/cm2 |
|||||
|
Recommended lubrication |
Turbine no.1 oil(ISO VG32) |
|||||
|
Drain bowl capacity |
15cc |
60cc |
||||
|
Oil bowl capacity |
25cc |
90cc |
||||
|
Weight(kg) |
0.7 |
0.9 |
||||
|
Main parts Material |
Body |
Aluminum alloy |
||||
|
Bowl |
pc |
|||||
|
Bowl guard |
AF 1500-AF200:without BF2000-BF4000:with（plastic） |
|||||
