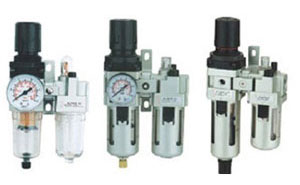

Filters Regulators Lubricators Unit AC Series (2 union)







Order code

AC

2010

-

02

D

F.R.L unit

Body size

1010

2010

3010

4010

5010



Port size

M5:M5

02:1/4

03:3/8

04:1/2

06:3/4

10:1

Drain type

Nil: Manual drain

A: Semi automatic drain

D: Automatic drain







Specification

Model

AC1010

-M5

AC1010

-M5A

AC1010

-M5D

AC2010

-02

AC2010

-02A

AC2010

-02D

AC3010

-02

AC3010

-02A

AC3010

-02D

AC3010

-03

AW3010

-03A

AC3010

-03D

AC4010

-03

AC4010

-03A

AC4010

-03D

AC4010

-04

AAC4010

-04A

AC4010

-04D

AC4010

-06

AC4010

-06A

AC4010

-06D

AC5010

-06

AC5010

-06A

AC5010

-06D

AC5010

-10

AC5010

-10A

AC5010

-10D

Component

filter regulator

AW2000

AW2000

AW3000

AW3000

AW4000

AW4000

AW4000

AW5000

AW5000

lubricator

AL2000

AL2000

AL3000

AL3000

AL4000

AL4000

AL4000

AL5000

AL5000

Port size RC(L/Min)

M5×0.8

1/4"

1/4"

3/8"

3/8"

1/2"

3/4"

3/4"

1

Pressure gauge port size

1/16"

1/8"

1/8"

1/8"

1/8"

1/4"

1/4"

1/4"

1/4"

Flow rate(l/Min)

90

500

1700

1700

3000

3000

3000

5000

5000

Fluid

Air

Proof pressure

1.5MPA(15.3kgf/cm2)

Max. operating pressure

1.0MPA(10.2kgf/cm2)

Ambient & fluid temperature

5-60oc

Nominal filtration rate

5uM

Recommended lubrication

Turbine NO.1 oil(ISO VG32)

Adjustable pressure range

0.05-0.7Mpa                                     0.05-0.85Mpa

Bracket

Y10T

Y20T

Y30T

Y30T

Y40T

Y40T

Y50T

Y50T

Y50T

Pressure gauge

Y30-10-M5

Y40-6-1/8  Y40- 6-1/8

Y40-10-1/8

Y50-6-1/4   Y50-10-1/4

Weight(kg)

0.22

0.66

0.98

0.98

1.93

1.93

1.99

2.7

2.7

Main parts

Material

Body

Aluminum alloy

Bowl

PC

Bowl guard

AC1010-AC2010:without     AC3010-AC5010:without (iron)

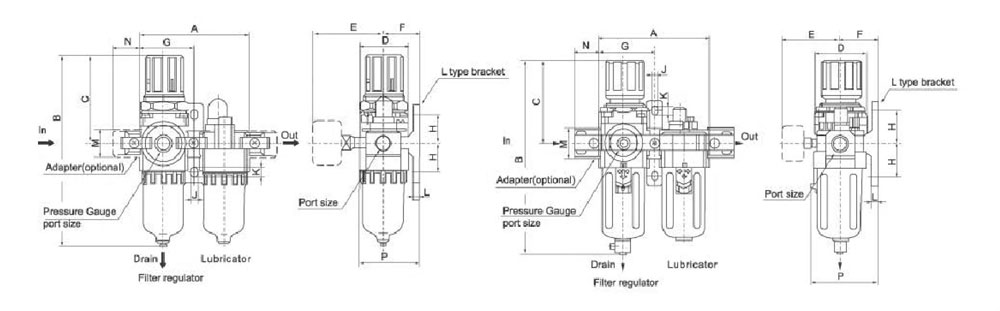

Dimension

Model

Port size

A

B

C

D

E

F

G

H

J

K

L

M

N

AC1010

M5×0.8

91

84.5

25.5

25

26

25

33

20

4.5

7.5

5

17.5

16

AC2010

1/4"

140

125

38

40

56.8

40

50

24

5.5

8.5

5

22

23

AC3010

1/4",3/8"

181

156.5

38

53

60.8

41

64

35

7

11

7

34.2

26

AC4010

3/8",1/2"

238

191.5

41

70

65.5

50

84

40

9

13

7

42.2

36

AC4010-06

3/4

253

193

40.5

70

69.5

50

89

40

9

13

7

46.2

36
