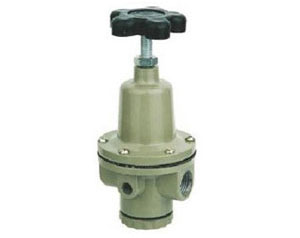

Pneumatic Regulator Q Series







Order code

QTY

-

15

Regulator



Port size

08:1/4"

10:3/8"

15:3/4"

20:1/2"

25:1"

40:11/2"

50:2"







Specification

Model

QTY-08

QTY-10

QTY-15

QTY-20

QTY-25

QTY-40

QTY-50

Port size RC(L/Min)

1/4"

3/8"

1/2"

3/4"

1"

11/2"

2"

Fluid

Air

Adjustable pressure range

0.5-8kgf/cm2

Max. adjustable pressure

9.5kgf/cm2

Proof pressure

15.0kgf/cm2

Ambient & fluid temperature

5-60oc

Weight(kg)















Body main parts

Aluminum alloy

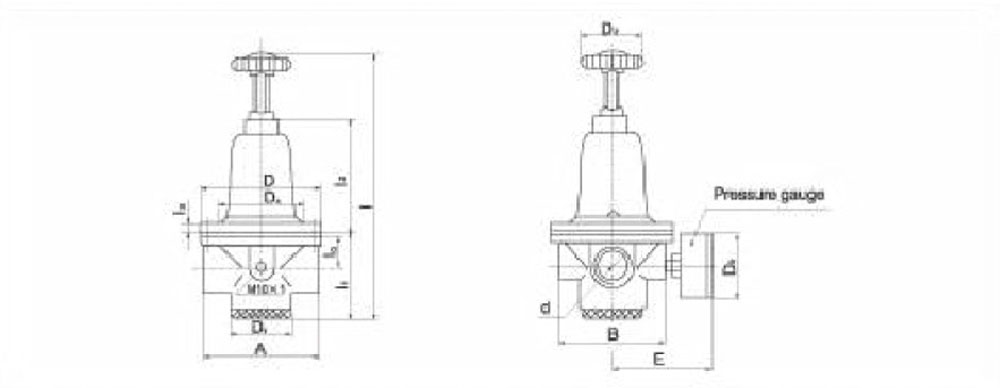

Dimension

Model

Port size

A

B

D

D1

D2

D3

D4

L0

L1

L2

L3

E

Lmax

QTY--8

1/4"

74

64

Ф80

Ф34

Ф60

Ф58

Ф60

16

52

69

8

80

173

QTY--10

3/8"

74

64

Ф80

Ф34

Ф60

Ф58

Ф60

16

52

69

8

80

173

QTY--15

1/2"

74

64

Ф80

Ф34

Ф60

Ф58

Ф60

21

58

69

8

80

181

QTY--20

3/4"

109

113

Ф120

Ф60

Ф90

Ф58

Ф90

30

78

108

9

100

250

QTY--25

1"

109

113

Ф120

Ф60

Ф90

Ф58

Ф90

30

78

108

9

100

250

QTY--40

11/2"

136

104

Ф120

Ф60

Ф90

Ф58

Ф90

40

100

108

9

100

280
