SSL3DC Micro Diaphragm Gas Pump





Order code

SSL

2.5

BLDC

-

24

-

E

Series code

Flow range

BLDC: Brushless motor



Voltage



E:EPDM



2.5

DC: Brush motor



6v



N: Neoprene





LC:



9v













12v







Typical applications

Autoclave

Vacuum transfer

Beauty equipment

Bio-Chemical Analyzer

Electrolyte

Patient Monitoring

Chemistry analysis

Blood Pressure Monitor

Air Sampler

Sewage disposal

Gas detection devices

Gas massage products

Lab equipment

Micro plate Washer

Wide-Format Printer

Automatic Tourniquet



Features

BLDC

oil-free

high efficiency

maintenance Free

Low noise level & vibration

long life

low weight

compact size

corrosion resistant

can be mounted in any plane



Performance date

Physical properties

Electrical

Operating environment:

(5-50 oC)

Motor type:

SSL Iron Core Brush

Media:

Most gases and liquids

voltage:

24VDC/12VDC/9VDC/6VDC

Humidity:

0-95%RH

Pneumatic

Wetted material:

EPDM/NEOPRENE

Max flow:

2.6LPM

Valves:

EPDM/NEOPRENE

Pressure range:

0-100kpa

Pump head:

Nylon

Vacuum range:

 -70kpa

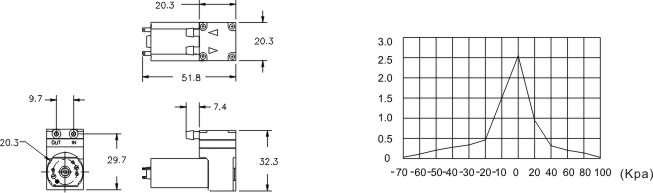

Dimensions

Flow curves

Pump mass-    gms

The under performance graph illustrates the overall performance of the pump handling air at 20m above sea level at 25oC
