Standard Air Cylinder SCSU Series







Order code

SC/SU

50×50

-

S

-

FA

Series

SC: double-acting type(pull rod)

SU: double-acting type(built-in rod)

SCD:DOUBLE ROD TYPE

SCJ: double rod type

(one side adjustable)

Bore×stoke



Built-in magnets

Nil: without

S: with



Mounting type

Nil: basic type

CA: single clevis type

CB: double clevis type

FA: front flange type

FB: rear flange type

LB: foot bracket type

TC: center trunnion type

TC-M: center trunnion type with foot







Specification

Bore size(mm)

32

40

50

63

80

100

Action

Double acting type

Fluid

Air(filtered through 40u filter element)

Operating pressure

0.1-0.9Mpa(1-9kgf/cm2)

Proof pressure

1.35Mpa(13.5kgf/cm2)

Ambient & fluid temperature

-5-70oC

Cushion

Air cushion

Cushion stroke(mm)

24

32

Port size

1/8"

1/4"

3/8"

1/2"

Body material

Aluminum alloy







Stroke

Bore(mm)

Standard stroke(mm)

Maximum stroke(mm)

Allowable stroke(mm)

32

25

50

75

100

125

150

175

200

250

300

350

400

500











1000

2000

40

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800





1200

2000

50

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1200

2000

63

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1500

2000

80

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1500

2000

100

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1500

2000

125

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1500

2000

160

25

50

75

100

125

150

175

200

250

300

350

400

500

600

700

800

900

1000

1500

2000







Applicable auto switch

TYPE          bore size

32

40

50

63

80

100

125

160

Auto switch

CS1-F CS1-U

Auto switch mounting base

F-50

F-63

F-100

F-125

F-160

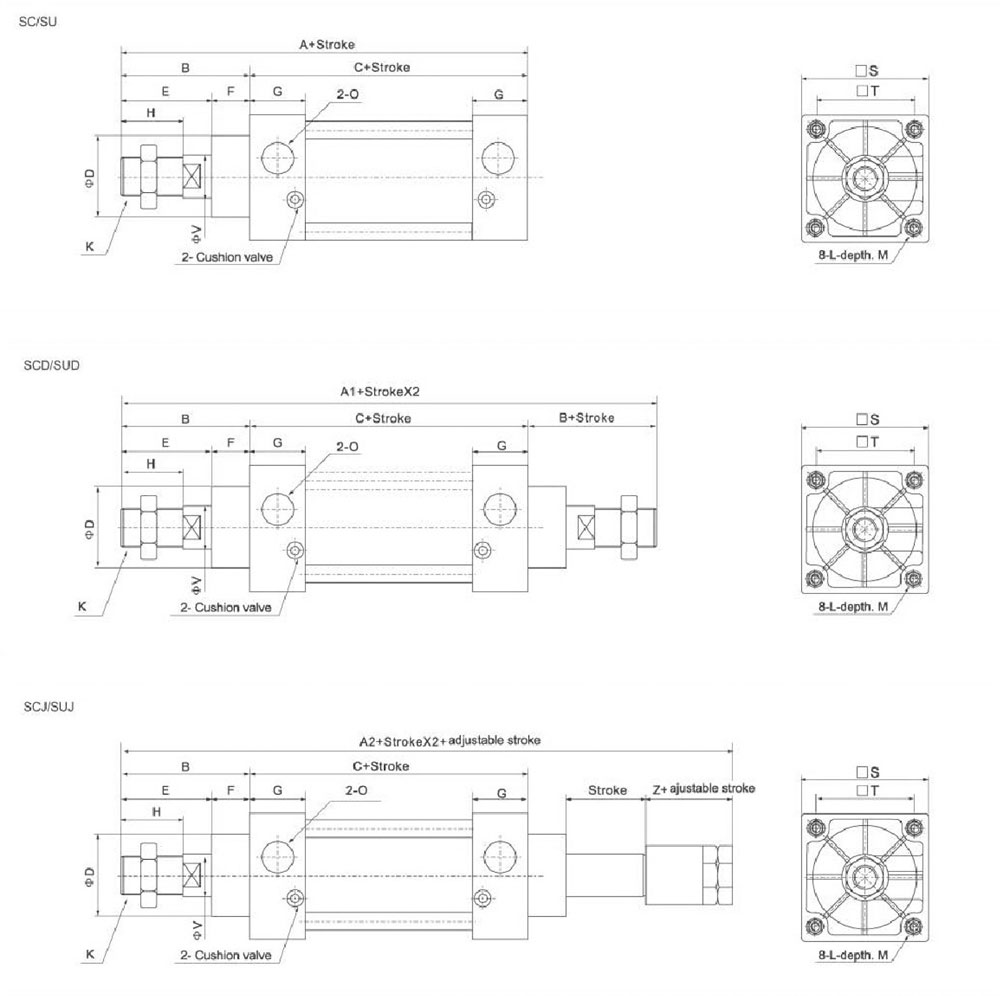

Dimension

Bore size(mm)

A

A1

A2

B

C

D

E

F

G

H

K

L

O

S

T

V

32

140

187

182

47

93

28

32

15

27.5

22

M10×1.25

M6×1

G1/8

45

33

12

40

142

191

185

49

93

32

34

15

27.5

24

M12×1.25

M6×1

G1/4

50

37

16

50

150

207

196

57

93

38

42

15

27.5

32

M16×1.5

M6×1

G1/4

62

47

20

63

153

210

199

57

96

38

42

15

27.5

32

M16×1.5

M8×1.25

G3/8

75

56

20

80

183

258

243

75

108

47

54

21

33

40

M20×1.5

M10×1.25

G3/8

94

70

25

100

189

264

249

75

114

47

54

31

33

40

M20×1.5

M10×1.25

G1/2

112

84

25

125

242

339

324

96

146

60

64

32

40

54

M27×2

M12

G1/2

145

110

32

160

328

480

441

152

176

70

99

53

45

72

M36×2

M16

G1/2

190

145

40

200

343

-

-

154

189

75

99

55

50

72

M36×2

M16

G1/2

225

180

40

250

384

-

-

189

195

95

119

70

50

84

M42×2

M20

G1/2

280

225

50

320

431

-

-

221

210

110

136

85

55

96

M48×2

M24

G3/4

350

260

50
