Compact Pneumatic Cylinder CQS Series
|
Order code |
||||||
|
CQS |
B |
20×50 |
- |
D |
- |
M |
|
CQS: without built -in magnet type CDQS :with built- in magnet type |
Mounting type B: through-hole A: Both ends female thread |
bore×stroke |
|
Action type D: double acting S: single acting (spring return type) T: single acting (spring stretched type) |
|
Nil: rod end female thread M: rod end male thread |
|
Specification |
||||
|
Bore size(mm) |
12 |
16 |
20 |
25 |
|
Action |
Double acting type |
|||
|
Fluid |
Air(filtered through40u filter element) |
|||
|
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
|||
|
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
|||
|
Ambient& fluid temperature |
-5-70oc |
|||
|
Cushion |
Without cushion |
|||
|
Port size |
M5 |
|||
|
Body material |
Aluminum alloy |
|||
|
Stroke |
||||||||||||
|
Bore size(mm) |
Standard stroke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||
|
12 |
5 |
10 |
15 |
20 |
25 |
30 |
|
|
50 |
60 |
||
|
16 |
5 |
10 |
15 |
20 |
25 |
30 |
|
|
50 |
60 |
||
|
20 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
80 |
90 |
|
25 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
80 |
60 |
|
Applicable Auto Switch |
||||
|
Type bore size |
12 |
16 |
20 |
25 |
|
Auto switch |
|
|||
|

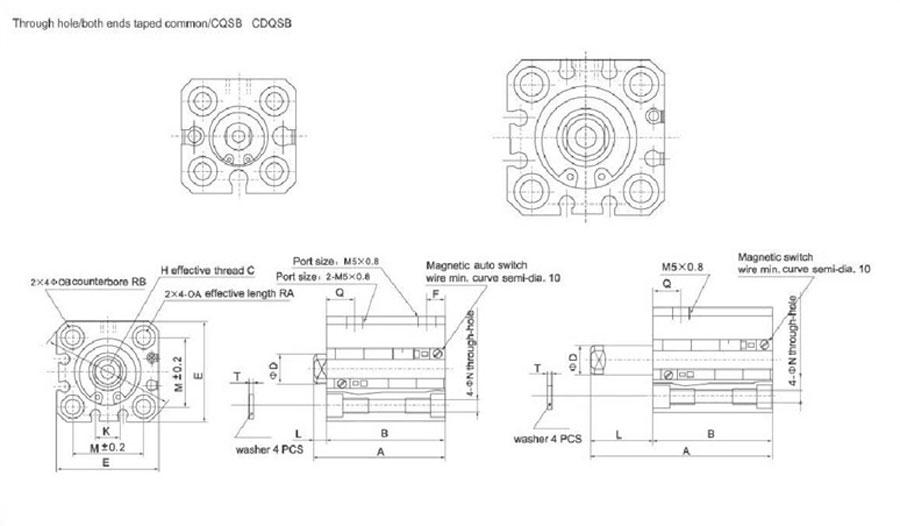

Dimension |
|||||||||||||||||||||
|
Bore size(mm) |
Single acting (standard) |
Double acting (standard) (with magnet) |
|||||||||||||||||||
|
C |
D |
E |
H |
I |
K |
M |
N |
OA |
|
RA |
RB |
T |
Q |
A |
B |
F |
L |
Q |
A |
B |
|
|
12 |
6 |
6 |
25 |
M3×0.5 |
32 |
5 |
15.5 |
3.5 |
M4×0.7 |
6.5 |
7 |
4 |
0.5 |
7.5 |
20+st |
17+st |
5 |
3.5 |
7.5 |
25.5+st |
22+st |
|
16 |
8 |
8 |
29 |
M4×0.7 |
38 |
6 |
20 |
3.5 |
M4×0.7 |
6.5 |
7 |
4 |
0.5 |
7.5 |
22.5+st |
17+st |
5 |
3.5 |
7.5 |
25.5+st |
22+st |
|
20 |
7 |
10 |
36 |
M5×0.8 |
47 |
8 |
25.5 |
5.5 |
M6×1.0 |
9 |
10 |
7 |
1 |
9 |
24+st |
19.5+st |
5.5 |
4.5 |
9 |
34+st |
29.5+st |
|
25 |
12 |
12 |
40 |
M6×1.0 |
52 |
10 |
28 |
5.5 |
M6×1.0 |
9 |
10 |
7 |
1 |
11 |
27.5+st |
22.5+st |
5.5 |
5 |
11 |
37.5+st |
32.5+st |
|
Single acting: spring return |
Single acting: spring extended |
|||||||||||||||||||||
|
Bore size (mm) |
standard |
With magnet |
Bore size (mm) |
standard |
With magnet |
|||||||||||||||||
|
A |
|
B |
|
F |
L |
A |
|
B |
|
A |
|
B |
|
L |
|
Q |
A |
|
B |
|
||
|
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
5st |
10st |
|||||
|
12 |
25.5 |
30.5 |
22 |
27 |
5 |
3.5 |
30.5 |
35.5 |
27 |
32 |
12 |
30.5 |
40.5 |
22 |
27 |
8.5 |
13.5 |
7.5 |
30.5 |
35.5 |
27 |
32 |
|
16 |
25.5 |
30.5 |
22 |
27 |
5 |
3.5 |
30.5 |
35.5 |
27 |
32 |
16 |
30.5 |
40.5 |
22 |
27 |
8.5 |
13.5 |
7.5 |
30.5 |
35.5 |
27 |
32 |
|
20 |
29 |
34 |
24.5 |
29.5 |
5.5 |
4.5 |
39 |
44 |
34.5 |
39.5 |
20 |
34.5 |
39 |
24.5 |
29.5 |
9.5 |
14.5 |
9 |
39 |
44 |
34.5 |
39.5 |
|
25 |
32.5 |
37.5 |
27.5 |
32.5 |
5.5 |
5 |
42.5 |
47.5 |
37.5 |
42.5 |
25 |
37.5 |
42.5 |
32.5 |
32.5 |
10 |
15 |
11 |
42.5 |
47.5 |
37.5 |
42.5 |
|

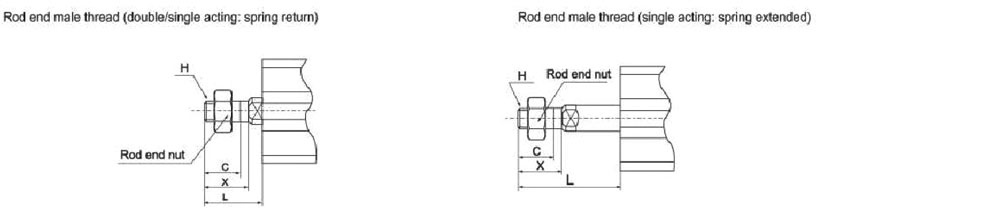

Dimension |
||||||||||
|
Bore size(mm) |
C |
H |
L |
x |
Bore size(mm) |
C |
H |
L(5XY) |
L(10XY) |
X |
|
12 |
9 |
M5×0.8 |
14 |
10.5 |
12 |
9 |
M5×0.8 |
19 |
12 |
10.5 |
|
16 |
10 |
M6×1.0 |
15.5 |
12 |
16 |
10 |
M6×1.0 |
20.5 |
16 |
12 |
|
20 |
12 |
M8×1.25 |
18.5 |
14 |
20 |
12 |
M8×1.25 |
23.5 |
20 |
4 |
|
25 |
15 |
M10×1.25 |
22.5 |
17.5 |
25 |
15 |
M10×1.25 |
27.5 |
25 |
17.5 |
