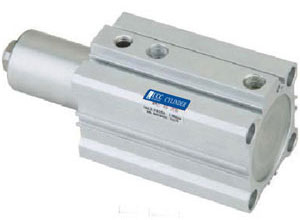

Double Rod Pneumatic Cylinder MK2 Series
Order code |
||||||
MK2 |
B |
20×100 |
- |
R |
- |
S |
Series code |
Mounting type B: through hole/both Ends tappedCommon A: two ends thread G: non-rod flange |
Bore×stroke |
|
Rotation direction R: clockwise L: anticlockwise |
|
Built-in magnets Nil: without S: with |
Specification |
||||||||
Bore size(mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
Fluid |
Air(filtered through40u filter element) |
|||||||
Action |
Double acting type |
|||||||
Max. operating pressure |
1Mpa |
|||||||
Min. operating pressure |
0.1Mpa |
|||||||
Ambient & fluid temperature |
Rubber cushion:10-+60oc non rubber cushion:-10+70oc |
|||||||
Piston speed |
50 |
|||||||
Cushion |
Rubber cushion |
|||||||
Stroke adjustable range(mm) |
+0.6 -0.4 |
|||||||
Lubrication |
Not required |
|||||||
Rotating angle |
90±10" |
|||||||
Rotating direction |
Left-right |
|||||||
Rotating stroke(mm) |
7.5 |
9.5 |
15 |
19 |
||||
Clamp stroke(mm) |
10-20 |
20-50 |
||||||
Allowable torque(n-m) |
1 |
3.8 |
7 |
13 |
27 |
47 |
107 |
182 |
Clamp force(N) |
40 |
7.5 |
100 |
185 |
300 |
525 |
825 |
1400 |
Rotating accuracy |
±1.4o |
±1.2o |
|
±0.9o |
±0.7o |
|||
Port size |
M5×0.8 |
1/8" |
1/4" |
|||||
Body material |
Aluminum alloy |
Applicable auto switch |
||||||||
Type bore size |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
Auto switch |
D-A |

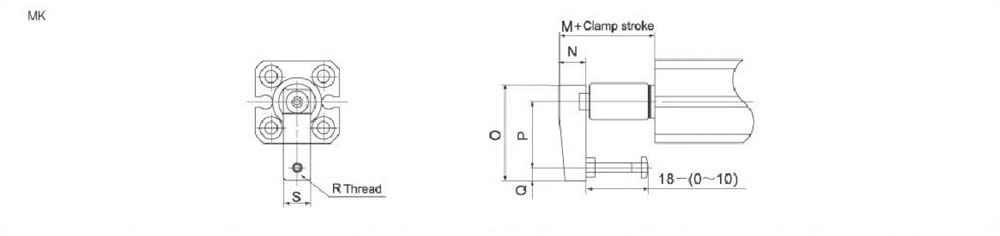

Dimension |
||||||||
model |
M |
N |
Q |
P |
Q |
R |
S |
|
MKB12-□□N |
18.5 |
8 |
29 |
20 |
4 |
M3×0.5 |
8 |
|
MKB18-□□N |
21.5 |
11 |
36 |
25 |
5 |
M4×0.7 |
11 |
|

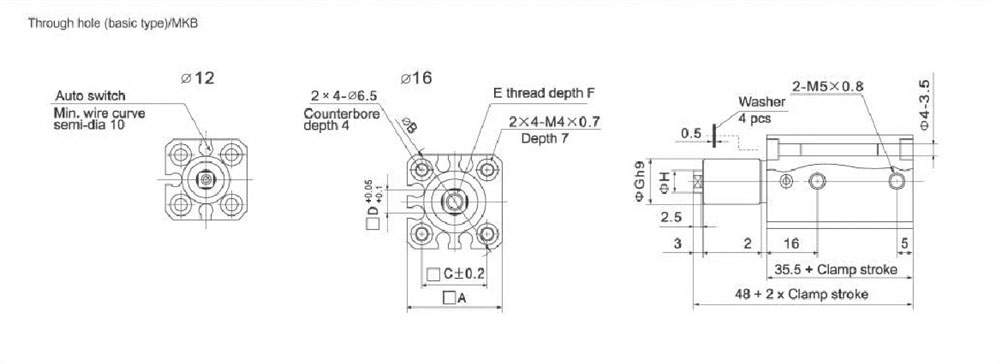

Dimension |
||||||||
Type |
A |
B |
C |
D |
E |
f |
Gh9 |
H |
MKE12 |
25 |
32 |
15.5 |
5 |
M3×0.5 |
5.5 |
11 |
6 |
MKB16 |
29 |
38 |
20 |
7 |
M5×0.8 |
6.5 |
14 |
8 |

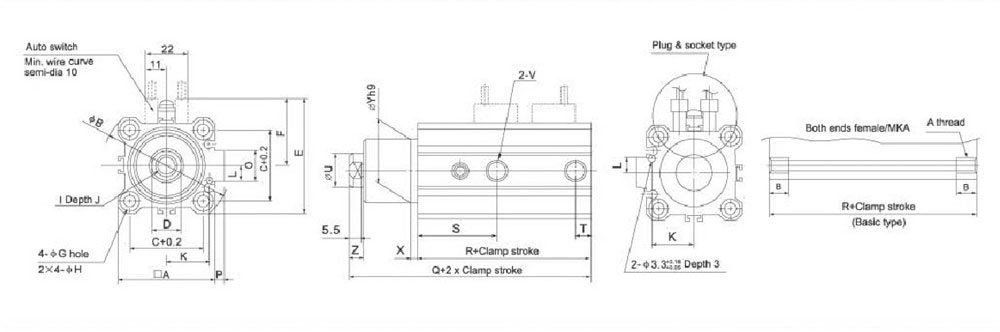

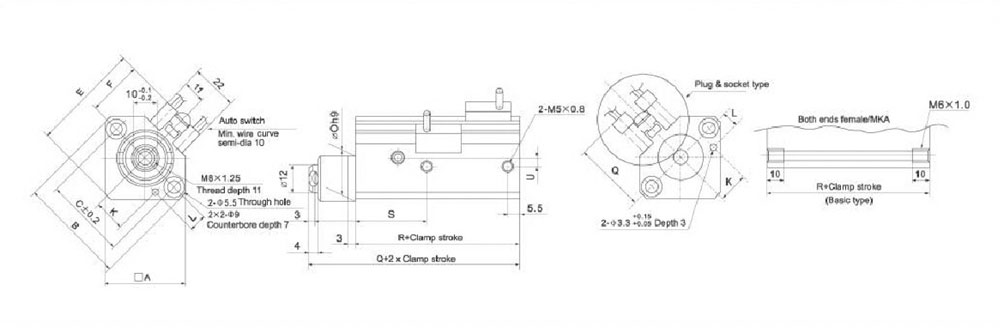

Dimension |
|||||||||||||||||||||||
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
O |
P |
Q |
R |
S |
T |
U |
V |
X |
D |
E |
Mkb32 |
45 |
60 |
34 |
14 |
54 |
31.5 |
5.5 |
9 depth7 |
M10×1.5 |
12 |
20±0.15 |
7±0.15 |
14 |
4.5 |
93.5 |
71.5 |
37 |
7.5 |
16 |
1/8 |
3 |
30 |
6.5 |
Mkb40 |
52 |
69 |
40 |
14 |
61 |
35 |
5.5 |
9depth7 |
M10×1.5 |
12 |
24±0.15 |
7±0.15 |
14 |
5 |
94.5 |
65 |
29.5 |
8 |
16 |
1/8 |
3 |
30 |
6.5 |
Mkb50 |
64 |
86 |
50 |
17 |
73 |
41 |
6.6 |
11depth8 |
M12×1.75 |
15 |
30±0.15 |
8±0.15 |
19 |
7 |
112 |
76.5 |
34 |
10.5 |
20 |
1/4 |
3.5 |
37 |
7.5 |
Mkb63 |
77 |
103 |
60 |
17 |
86 |
47.5 |
9 |
14depth10.5 |
M12×1.75 |
15 |
35±0.15 |
8±0.15 |
19 |
7 |
115 |
80 |
35 |
10.5 |
20 |
1/4 |
3.5 |
48 |
7.5 |
