Mini Cylinder C85 Series
|
Order code |
||||||
|
C85 |
CM |
25×50 |
- |
D |
- |
FA |
|
C85:without built-in magnet type CD85:with built-in magnet type CD85:double-acting type CD85D:double rod type CD85J:double rod type (one side adjustable) |
Rear cove type Nil: single clevis type CM: round end type U: without end type |
bore×stroke |
|
Action type D: double acting (spring return type) T: single acting (spring stretched type) |
|
Mounting type Nil: basic type FA: front flange type FB: rear flange type LB: foot bracket type |
|
Specification |
||||||
|
Bore size(mm) |
8 |
10 |
12 |
16 |
20 |
25 |
|
Action |
Double acting type |
|||||
|
Fluid |
Air(filtered through 40u filter element) |
|||||
|
Operating pressure |
0.1-0.9Mpa(1-9kgf/cm2) |
|||||
|
Proof pressure |
1.35Mpa(13.5kgf/cm2) |
|||||
|
Ambient & fluid temperature |
-5-70oc |
|||||
|
Cushion |
Without cushion |
|||||
|
Port size |
M5 |
1/8" |
||||
|
Body material |
Aluminum alloy |
|||||
|
Stroke |
||||||||||||||
|
Bore size(mm) |
Standard stroke(mm) |
Maximum stroke(mm) |
Allowable stroke(mm) |
|||||||||||
|
8 |
10 |
25 |
40 |
50 |
80 |
100 |
|
|
|
|
|
|
300 |
500 |
|
10 |
10 |
25 |
40 |
50 |
80 |
100 |
125 |
250 |
175 |
200 |
|
|
300 |
1000 |
|
12 |
10 |
25 |
40 |
50 |
80 |
100 |
125 |
250 |
175 |
200 |
|
|
300 |
1000 |
|
16 |
10 |
25 |
40 |
50 |
80 |
100 |
125 |
250 |
175 |
200 |
250 |
300 |
300 |
1000 |
|
25 |
10 |
25 |
40 |
50 |
80 |
100 |
125 |
250 |
175 |
200 |
250 |
300 |
500 |
|
|
Applicable auto switch |
||||||
|
Type bore size |
8 |
10 |
12 |
16 |
20 |
25 |
|
Auto switch |
|
|||||
|
Auto switch mounting base |
|
|
|
|
|
|
|

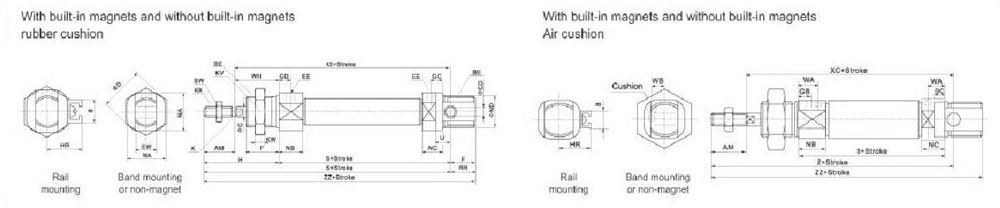

Dimension |
||||||||||||||||
|
Bore size(mm) |
AM |
BE |
φC |
φCD |
φD |
EE |
EW |
F |
GB |
GC |
WA |
WB |
H |
HR |
K |
KK |
|
8 |
12 |
M12×1.25 |
4 |
4 |
16.7 |
M12×0.8 |
8 |
12 |
7 |
5(5.5) |
|
|
28 |
10 |
28 |
M4×0.7 |
|
10 |
12 |
M12×1.25 |
4 |
4 |
16.7 |
M12×0.8 |
8 |
12 |
7(5.5) |
5(5.5) |
10.5 |
4.5 |
28 |
10.5 |
28 |
M4×0.7 |
|
12 |
16 |
M16×1.5 |
6 |
6 |
19.7 |
M12×0.8 |
12 |
17 |
8(5.5) |
6(5.5) |
9.5 |
5.5 |
38 |
14 |
38 |
M6×1 |
|
16 |
16 |
M16×1.5 |
6 |
6 |
19.7 |
M12×0.8 |
12 |
17 |
8(5.5) |
6 |
9.5 |
5.5 |
38 |
14 |
38 |
M6×1 |
|
20 |
20 |
M22×1.5 |
8 |
8 |
28 |
G1/8 |
16 |
20 |
8 |
8 |
11.5(13) |
8.5 |
44 |
17 |
44 |
M8×1.5 |
|
25 |
22 |
M22×1.5 |
10 |
8 |
33.5 |
G1/8 |
16 |
20 |
8 |
8 |
11.5(13) |
10.5 |
50 |
20 |
50 |
M10×1.5 |
|
Dimension |
||||||||||||||
|
Bore size(mm) |
KV |
KW |
NB |
NV |
NA |
φND |
RR |
S |
SW |
U |
WH |
XC |
Z |
ZZ |
|
8 |
19 |
6 |
11.5 |
9.5 |
15 |
12 |
10 |
46 |
7 |
6 |
16 |
64 |
76 |
86 |
|
10 |
19 |
6 |
11.5(13.5) |
9.5(13.5) |
15 |
12 |
10 |
46(53) |
7 |
6 |
16 |
64 |
76 |
86(93) |
|
12 |
24 |
8 |
12.5(12.5) |
10.5(12.5) |
18.3 |
16 |
14 |
50(54) |
10 |
9 |
22 |
75 |
91 |
105(109) |
|
16 |
24 |
8 |
12.5(12.5) |
10.5(12.5) |
18.3 |
16 |
13 |
56 |
10 |
9 |
22 |
82 |
98 |
111 |
|
20 |
32 |
11 |
15 |
15(17) |
24 |
22 |
11 |
62 |
13 |
12 |
24 |
95 |
115 |
126 |
|
25 |
32 |
11 |
15 |
15(17) |
30 |
22 |
11 |
65 |
17 |
12 |
28 |
104 |
126 |
137 |
|

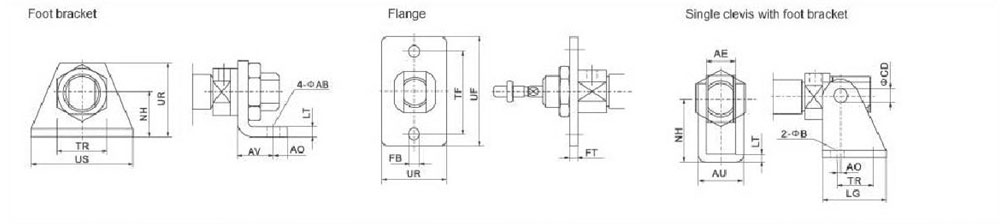

Dimension |
|||||||||||||||||||||||||
|
Bore size(mm) |
Foot bracket |
Flange |
Single-ear with foot bracket |
||||||||||||||||||||||
|
Port model |
φAB |
AO |
AV |
LT |
TR |
US |
NH |
|
Port model |
FT |
FB |
|
TF |
UF |
Port model |
φAB |
AO |
TR |
LG |
φCD |
AE |
AU |
NH |
LT |
|
|
8,10 |
C |
4.5 |
5 |
11 |
3.2 |
25 |
35 |
16 |
28 |
C |
32 |
4.5 |
22 |
30 |
40 |
C |
4.5 |
1.5 |
12.5 |
20 |
4 |
4.5 |
13.1 |
24 |
2.5 |
|
12.,16 |
C |
5.5 |
6 |
14 |
4 |
32 |
42 |
20 |
33 |
C |
4 |
5.5 |
30 |
40 |
52 |
C |
5.5 |
2 |
15 |
25 |
6 |
5.5 |
18.5 |
27 |
3.2 |
|
20,25 |
C |
6.8 |
8 |
17 |
5 |
40 |
54 |
25 |
42 |
C |
5 |
6.6 |
40 |
50 |
66 |
C |
6.6 |
4 |
20 |
32 |
8 |
6.6 |
24.1 |
30 |
4 |
|

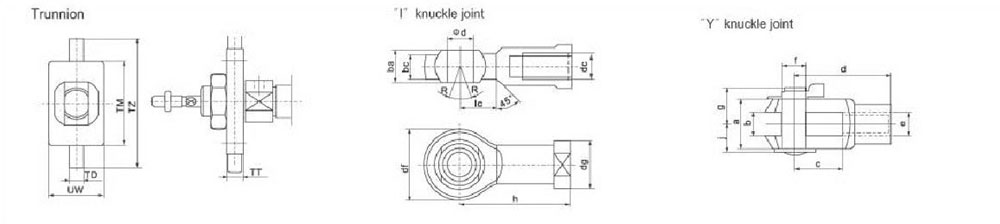

Dimension |
||||||||||||||||||||||||||
|
Bore size(mm) |
Trunnion |
"I" knuckle joint |
"Y" knuckle joint |
|||||||||||||||||||||||
|
8,10 |
Port model |
TT |
TD |
UW |
TM |
TZ |
Par model |
dc |
φd |
h |
df |
bc |
ba |
e |
dg |
R+ |
lc |
Part model |
e |
b |
d |
t |
g |
c |
j |
a |
|
12.,16 |
C |
6 |
4 |
20 |
26 |
38 |
KJ4D |
M4×0.7 |
4 |
27 |
18 |
6 |
8 |
10 |
6 |
7.5 |
10 |
GKME-8 |
M4×0.7 |
4 |
10 |
4 |
8 |
8 |
6 |
8 |
|
20,25 |
C |
8 |
6 |
25 |
38 |
58 |
KJ6D |
M6×1 |
6 |
30 |
20 |
6.75 |
9 |
12 |
6.75 |
6.5 |
10 |
GKM6-12 |
M6×1 |
6 |
10 |
6 |
10 |
12 |
8 |
12 |
|
20 |
C |
8 |
6 |
|
46 |
66 |
KJ8D |
M8×1.25 |
6 |
36 |
24 |
9 |
12 |
16 |
9 |
13 |
12 |
GKM8-16 |
M8×1.25 |
8 |
12 |
8 |
12 |
16 |
10 |
16 |
|
25 |
C |
8 |
6 |
32 |
46 |
66 |
KJ10D |
M10×1.25 |
6 |
43 |
28 |
10.5 |
14 |
20 |
10.5 |
13 |
14 |
GKM10-20 |
M10×1.25 |
10 |
14 |
10 |
18 |
20 |
12 |
20 |
