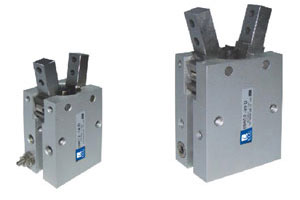

Gripper Cylinder MHC2 Series
|
Order code |
|||
|
MHC2 |
- |
16 |
D |
|
Series code |
|
Bore size 10-Φ 16-Φ 20-Φ 25-Φ |
Action D-double acting S-single acting |
|
Specification |
|||||
|
Bore size(mm) |
10 |
16 |
20 |
25 |
|
|
Fluid |
Air |
||||
|
Action |
double /single acting type(normally open) |
||||
|
Max. operating pressure |
0.7 |
||||
|
Max. operating pressure |
Double acting |
0.2 |
0.1 |
||
|
Single acting |
0.35 |
0.25 |
|||
|
Ambient & fluid temperature |
-10-60OC |
||||
|
Maximum operating frequency |
|
||||
|
Repeat accuracy |
±0.01 |
||||
|
Built-in magnets |
With(standard) |
||||
|
Recommended lubrication |
Turbine No.1 oil (ISO VG 32) |
||||
|
Port size |
M3×0.5 |
M3×0.8 |
|||
|
Specification |
|||||
|
model |
Bore size(mm) |
acting |
Hold power(N) |
Hold torque(N) |
weight |
|
MHC2-10D |
10 |
Double-acting |
- |
9.8 |
39 |
|
MHC2-16D |
16 |
- |
39.2 |
91 |
|
|
MHC2-20D |
20 |
- |
69.7 |
180 |
|
|
MHC2-25D |
25 |
- |
136 |
311 |
|
|
MHC2-10D |
10 |
Single-acting normally open |
- |
6.9 |
39 |
|
MHC2-16D |
16 |
- |
31.4 |
92 |
|
|
MHC2-20D |
20 |
- |
54 |
183 |
|
|
MHC2-25D |
25 |
- |
108 |
316 |
|
|

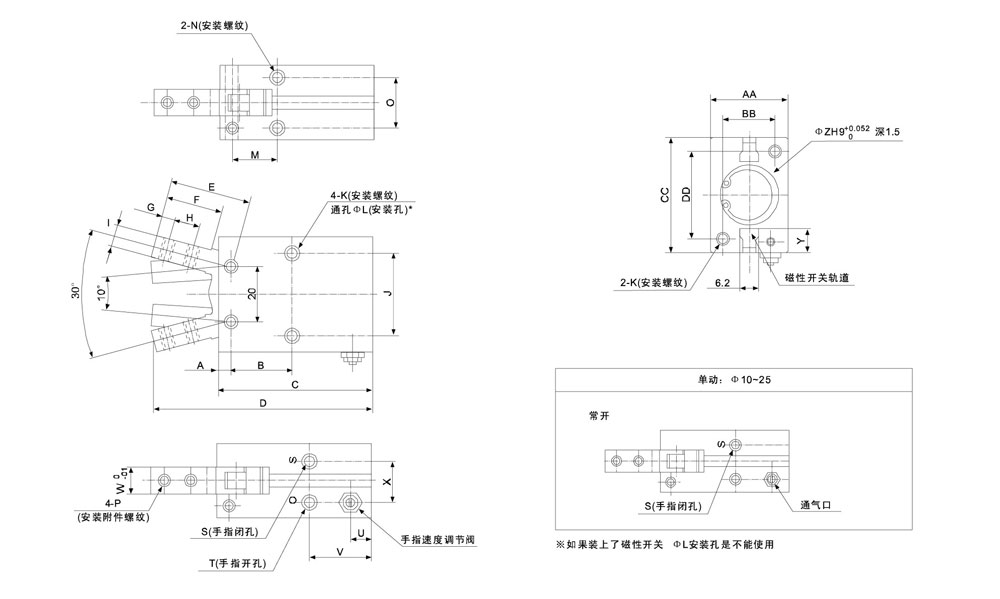

Dimension |
||||||||||||||||||||||||||||||
|
Bore size (mm) |
K |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
ΦL |
M |
N |
O |
P |
Q |
R |
Port size (mm) |
U |
V |
W |
X |
Y |
ΦZ |
AA |
BB |
CC |
DD |
|
|
S |
T |
|
||||||||||||||||||||||||||||
|
10 |
2.8 |
12.8 |
38.6 |
52.4 |
17.2 |
12. |
3 |
5.7 |
4 |
16 |
M3×0.5 Depth5 |
2.6 |
8.8 |
M3×0.5 Depth5 |
11.4 |
M2×0.45 |
3 |
5.7 |
M2×0.5 |
7.2 |
18.8 |
6.4 |
10.4 |
5.4 |
11 |
16.4 |
12 |
23 |
18 |
|
|
16 |
3.9 |
16.2 |
44.6 |
62.5 |
22.6 |
16 |
4 |
7 |
7 |
24 |
M4×0.7 Depth8 |
3.4 |
10.7 |
M4×0.7 Depth8 |
16 |
M3×0.5 |
4 |
7 |
M5×0.8 |
7 |
18.3 |
8 |
13 |
5.8 |
17 |
23.6 |
15 |
30.6 |
22 |
|
|
20 |
4.5 |
21.7 |
55.2 |
78.7 |
28 |
20 |
5.2 |
9 |
8 |
30 |
M4×0.8 Depth10 |
4.3 |
15.7 |
M4×0.8 Depth10 |
18.6 |
M4×0.7 |
5 |
9 |
M5×0.8 |
7.5 |
22.2 |
10 |
15 |
9 |
21 |
27.6 |
18 |
42 |
32 |
|
|
25 |
4.6 |
25.8 |
60.2 |
92 |
37.5 |
27 |
8 |
12 |
10 |
36 |
M68 Depth12 |
5.1 |
19.3 |
M68 Depth12 |
22 |
M5×0.8 |
6 |
12 |
M5×0.8 |
7.7 |
23.5 |
12 |
20 |
11.5 |
26 |
33.6 |
22 |
52 |
40 |
|
