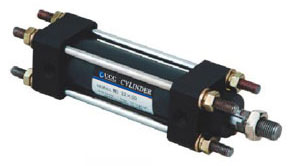

Air Hydraulic Cylinder MO Series
|
Order code |
|||||
|
MO |
- |
50×50 |
- |
- |
FA |
|
Series code MO: double acting (pull rod type) MOD: double rod Standard type MOJ: double rod Adjustable type |
|
Bore×stoke |
Magnet Nil: without S: with |
|
Mounting type Nil: basic type CA: single clevis type CB: double clevis type FA: front flange type FB: rear flange type LB: foot bracket type TC: center trunnion type TC-M: center trunnion type With foot |
|
Specification |
||||||||||||||||
|
Bore |
32 |
40 |
40 |
63 |
80 |
100 |
125 |
160 |
||||||||
|
Piston diameter |
16 |
20 |
20 |
25 |
32 |
40 |
50 |
60 |
||||||||
|
Action model |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
push |
pull |
|
Pressure area(cm2) |
8.03 |
6.03 |
12.56 |
9.42 |
19.62 |
16.48 |
31.16 |
26.25 |
50.24 |
42.20 |
78.50 |
69.94 |
122.66 |
103.03 |
200.96 |
172.70 |
|
Working pressure(140kgf/cm2) |
562 |
422 |
880 |
660 |
1373 |
1150 |
2180 |
1835 |
3516 |
2954 |
5495 |
4616 |
8586 |
7212 |
14067 |
12089 |
|

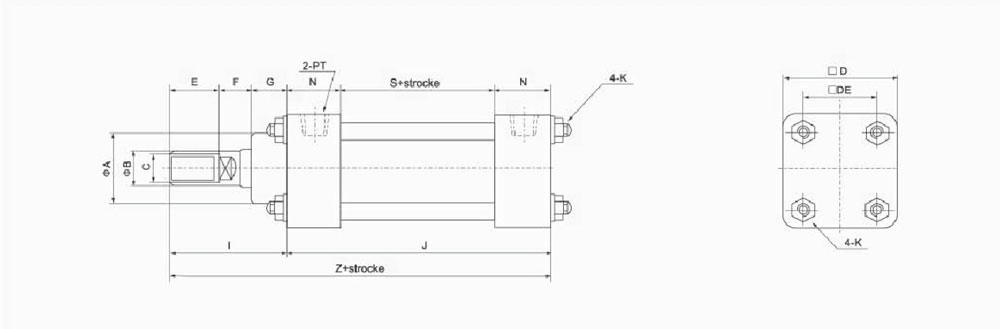

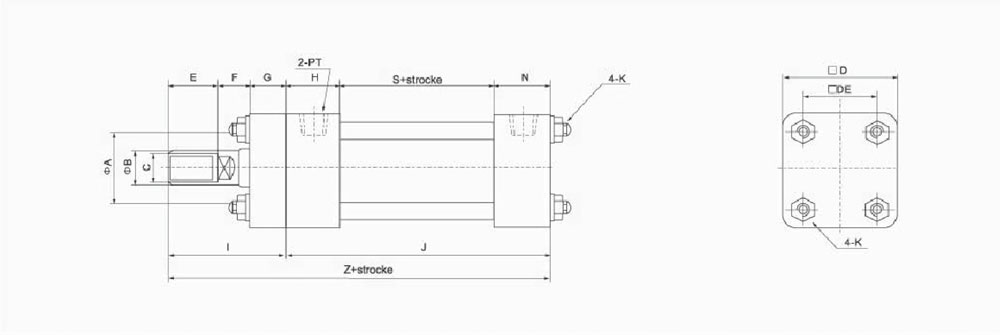

Dimension |
|||||||||||||||
|
Model |
φA |
φB |
C |
□D |
□DE |
E |
F |
G |
N |
I |
J |
K |
S |
Z |
PT |
|
Φ40 |
35 |
16 |
M14×1.5 |
52 |
36 |
28 |
10 |
15 |
25 |
53 |
100 |
M8 |
50 |
153 |
ZG1/4 |
|
Φ50 |
40 |
20 |
M16×1.5 |
64 |
45 |
28 |
17 |
20 |
30 |
65 |
110 |
M8 |
50 |
175 |
ZG3/8 |
|
Φ63 |
50 |
20 |
M16×1.5 |
80 |
50 |
28 |
17 |
20 |
30 |
65 |
110 |
M10 |
50 |
175 |
ZG3/8 |
|
Φ80 |
50 |
25 |
M22×1.5 |
85 |
60 |
40 |
20 |
30 |
31 |
90 |
112 |
M10 |
50 |
202 |
ZG3/8 |
|
Φ100 |
60 |
32 |
M26×2 |
106 |
74 |
40 |
20 |
32 |
37 |
92 |
129 |
M12 |
55 |
221 |
ZG1/2 |
|
Φ125 |
80 |
40 |
M30×2 |
122 |
90 |
45 |
20 |
32 |
37 |
97 |
154 |
M14 |
80 |
251 |
ZG1/2 |
|
Φ160 |
90 |
50 |
M40×2 |
147 |
110 |
55 |
25 |
35 |
44 |
115 |
168 |
M16 |
80 |
283 |
ZG1/2 |
|
Φ200 |
100 |
60 |
M52×2 |
188 |
145 |
65 |
30 |
32 |
55 |
130 |
190 |
M20 |
80 |
320 |
ZG3/4 |
