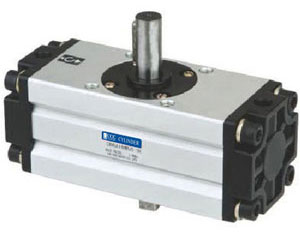

Pneumatic Rotary Cylinder CRA1 Series
Order code |
||||||
CRA1 |
B |
W |
U |
50 |
- |
90 |
Series CRA1:without magnet CDRA1:with magnet |
B: basic type L: foot bracket type F: flange type |
S: sing shaft W: double shaft |
Nil: without Adjustable parts U: with angel Adjustable parts |
Bore 30:φ 50:φ 63:φ 80:φ 100:φ |
|
Angle 90:90" 180:180" |
Specification |
||||||
Bore size(mm) |
30 |
50 |
63 |
80 |
100 |
|
Fluid |
Air(filtered through 40u filter element) |
|||||
Action |
Double acting type |
|||||
Max. operating pressure |
1Mapa |
|||||
Min. operating pressure |
0.1Mpa |
|||||
Ambient & fluid temperature |
0-60oC(not freezing) |
|||||
Backlash |
Within 1"(f30 has a stopper installed ,there is no backlash produced under pressure) |
|||||
Tolerance in rotating angle |
+4/0 |
|||||
lubrication |
Not required |
|||||
Output torque (N.m) |
1.9 |
9.3 |
17 |
32 |
74 |
|
Allowed power |
Rubber cushion |
0.01 |
0.05 |
0.12 |
0.16 |
0.54 |
Air cushion |
|
0.98 |
1.5 |
2.0 |
2.9 |
|
Rotating time range(min/90 degree) |
0.2-1 |
0.2-2 |
0.2-3 |
0.2-4 |
0.2-5 |
|
Port size |
M5×0.8 |
1/8 |
1/8 |
1/4 |
3/8 |
|
Body material |
Aluminum alloy |
Applicable auto switch |
|||||
Type bore size |
30 |
50 |
63 |
80 |
100 |
Auto switch |
D-A |
||||
Angle |
90o -180o |

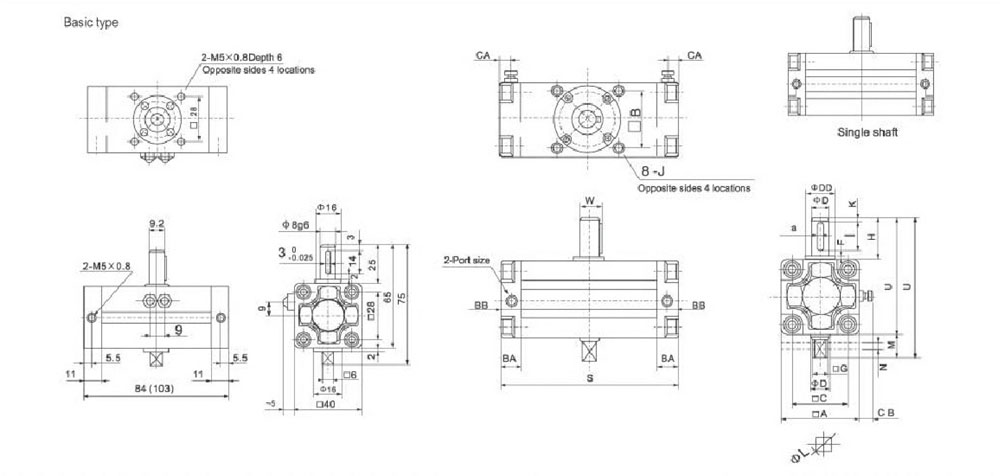

Dimension |
|||||||||||||||||||||||||
Bore size (mm) |
port size (mm) |
Basic : single shaft |
Average size |
Double shaft size |
Built-in magnet size |
||||||||||||||||||||
□ A |
□B |
□C |
φD |
φDD |
F |
H |
J |
K |
S |
U |
W |
BA |
CA |
CB |
A |
E |
φD |
□G |
φL |
M |
UU |
S(90o) |
S(180o) |
||
50 |
1/8 |
62 |
48 |
46 |
15 |
25 |
2.5 |
36 |
M8×1.25depth8 |
5 |
144(177) |
98 |
17 |
17 |
8.5 |
13 |
5 |
25 |
15 |
11 |
14 |
20 |
118 |
156 |
189 |
63 |
1/8 |
76 |
60 |
57 |
17 |
30 |
2.5 |
41 |
M10×1.5depth12 |
5 |
163(201.5) |
117 |
19.5 |
20 |
10 |
14 |
6 |
25 |
17 |
13 |
16 |
22 |
139 |
175 |
213.5 |
80 |
1/4 |
92 |
72 |
70 |
20 |
35 |
3 |
50 |
M12×1.75depth13 |
5 |
186(230) |
142 |
22.5 |
23.5 |
12 |
18 |
6 |
40 |
20 |
15 |
19 |
25 |
167 |
199 |
243 |
100 |
3/8 |
112 |
85 |
85 |
25 |
40 |
4 |
60 |
M12×1.75depth14 |
|
245(311) |
172 |
28 |
25 |
12.5 |
18 |
8. |
45 |
25 |
19 |
24 |
30 |
202 |
259 |
325 |

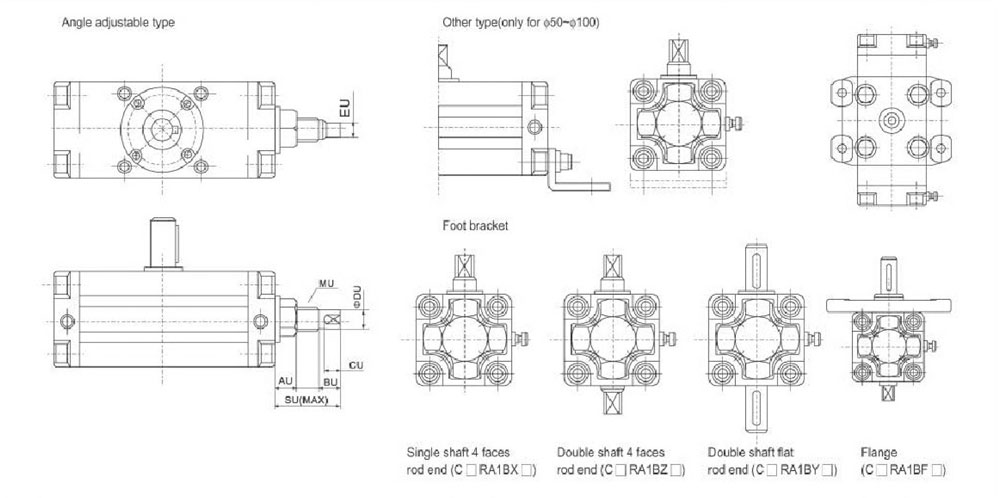

Dimension |
|||||||
Model |
AU |
BU |
CU |
φDU |
EU |
SU |
MU |
CRA1B□U50 |
15 |
11 |
9 |
14 |
12 |
45 |
M16×1.5 |
CRA1B□U63 |
19 |
13 |
11 |
18 |
14 |
54.5 |
M20×1.5 |
CRA1B□U80 |
22 |
18 |
13 |
22 |
19 |
62.5 |
M24×1.5 |
CRA1B□U100 |
22 |
16 |
13 |
22 |
18 |
73.5 |
M24×1.5 |
