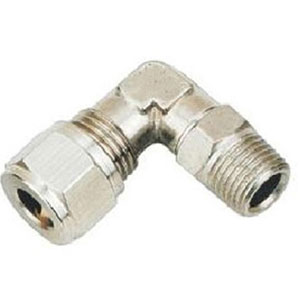

Brass Fitting KTL Series Male Elbow







Model

KTL4-M5

KTL4-01

KTL4-02

KTL6-M5

KTL6-01

KTL6-02

KTL6-03

KTL8-01

KTL8-02

KTL8-03

KTL8-04

KTL10-01

KLL10-02

KTL10-03

KTL10-04

KTL12-02

KTL12-03

KTL12-04







How to order

KTL

8

-

20

Series code

Tube size

4

6

8

10

12



Port size

01:1/8"

02:1/4"

03:/3/8"

04:1/2"







Specification

Media

Air

Proof pressure

1.32Mpa(1.35kgf/cm2)

Pressure range

Positive pressure

0-0.9Mpa(0-9.2kgf/cm2)

Negative pressure

-99.99-0kpa(750-0mmHg)

Ambient &fluid temperature

0-60oc

Recommended tubes

Urethane tube, nylon tube

Material

Brass
