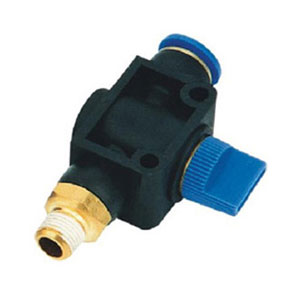

One Touch Fitting HVSF
|

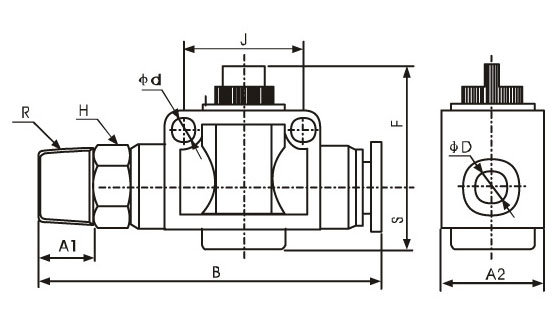

Dimension |
||||||||||
|
model |
ΦD |
R |
A1 |
A21 |
B |
H |
F |
F |
S |
Φd |
|
HVSF4-M5 |
4 |
M5 |
5 |
20 |
60 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF4-01 |
4 |
R1/8 |
8 |
20 |
63 |
14 |
22.3 |
30 |
11 |
4.5 |
|
JHVSF-02 |
4 |
R1/4 |
10 |
20 |
65 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF-M5 |
6 |
M5 |
5 |
20 |
60 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF6-01 |
6 |
R1/8 |
8 |
20 |
63 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF6-02 |
6 |
R1/4 |
10 |
20 |
65 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF6-03 |
6 |
R3/8 |
10 |
20 |
65 |
17 |
22.3 |
30 |
11 |
4.5 |
|
HVSF6-04 |
6 |
R1/2 |
11 |
20 |
67 |
21 |
22.3 |
30 |
11 |
4.5 |
|
HVSF8-01 |
8 |
R1/8 |
8 |
20 |
63 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF8-02 |
8 |
R1/4 |
10 |
20 |
65 |
14 |
22.3 |
30 |
11 |
4.5 |
|
HVSF8-03 |
8 |
R3/8 |
10 |
20 |
65 |
17 |
22.3 |
30 |
11 |
4.5 |
|
HVSF8-04 |
8 |
R1/2 |
11 |
20 |
67 |
21 |
22.3 |
30 |
11 |
4.5 |
|
HVSF10-01 |
10 |
R1/8 |
8 |
21 |
76 |
17 |
26.5 |
34 |
22 |
4.5 |
|
HVSF10-02 |
10 |
R1/4 |
10 |
21 |
79 |
17 |
26.5 |
34 |
22 |
4.5 |
|
HVSF10-03 |
10 |
R3/8 |
10 |
21 |
79 |
17 |
26.5 |
34 |
22 |
4.5 |
|
HVSF10-04 |
10 |
R1/2 |
11 |
21 |
81 |
21 |
26.5 |
34 |
22 |
4.5 |
|
HVSF12-02 |
12 |
R1/8 |
10 |
28 |
86 |
19 |
32.4 |
37 |
17 |
4.5 |
|
HVSF12-03 |
12 |
R3/8 |
10 |
28 |
89 |
19 |
32.4 |
37 |
17 |
4.5 |
|
HVSF112-04 |
12 |
R1/2 |
11 |
28 |
92 |
21 |
32.4 |
37 |
17 |
4.5 |
