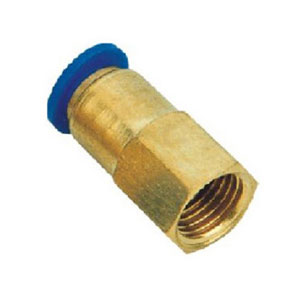

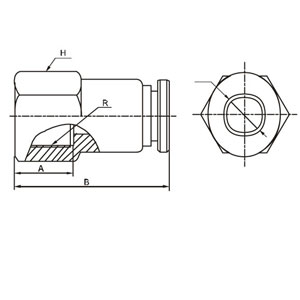

One Touch Fitting SPCF
|
Model |
ΦD |
R |
A |
B |
H |
H |
|
SPCF5/32-M5 |
4 |
M5 |
6.5 |
24.4 |
|
10 |
|
SPCF5/32-01 |
4 |
R1/8 |
9 |
26.8 |
|
10 |
|
SPC5/32-02 |
4 |
R1/4 |
11 |
28.8 |
17 |
15 |
|
SPCF1/4-M5 |
6 |
M5 |
6.5 |
24 |
|
12 |
|
SPCF1/4-01 |
6 |
R1/8 |
9 |
28 |
12 |
12 |
|
SPCF1/4-02 |
6 |
R1/4 |
11 |
30 |
15 |
15 |
|
SPCF1/4-03 |
6 |
R3/8 |
12 |
30.5 |
17 |
19 |
|
SPCF1/4-04 |
6 |
R1/2 |
12.5 |
31.5 |
19 |
24 |
|
SPCF5/16-01 |
8 |
R1/8 |
9 |
28.5 |
14 |
14 |
|
SPCF5/16-02 |
8 |
R1/4 |
11 |
30.5 |
17 |
15 |
|
SPCF5/16-03 |
8 |
R3/8 |
12 |
31 |
19 |
19 |
|
SPCF5/16-04 |
8 |
R1/2 |
12.5 |
32.5 |
24 |
24 |
|
SPCF3/8-01 |
10 |
R1/8 |
9 |
32.4 |
17 |
17 |
|
SPCF3/8-02 |
10 |
R1/4 |
11 |
34 |
17 |
17 |
|
SPCF3/8-03 |
10 |
R3/8 |
12 |
34 |
19 |
19 |
|
SPCF3/8-04 |
10 |
R1/2 |
12.5 |
35 |
|
24 |
|
SPCF1/2-01 |
12 |
R1/8 |
9 |
35 |
19 |
19 |
|
SPCF1/2-02 |
12 |
R1/4 |
11 |
35 |
19 |
19 |
|
SPCF1/2-03 |
12 |
R3/8 |
12 |
36.5 |
24 |
19 |
|
SPCF1/2-04 |
12 |
R1/2 |
12.5 |
46.4 |
|
24 |
|
Order code |
|||
|
SPCF |
1/4 |
- |
RO2 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
01:1/8" 02:1/4" 03:3/8" 04:1/2" |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
code |
01 |
02 |
03 |
04 |
|
Size |
1/8 |
1/4 |
3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
