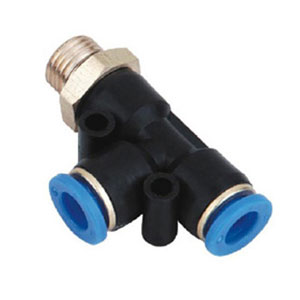

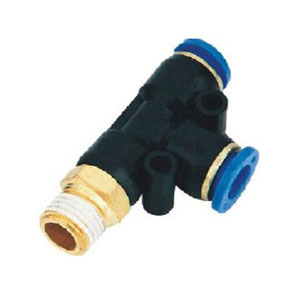

One Touch Fitting SPD
|

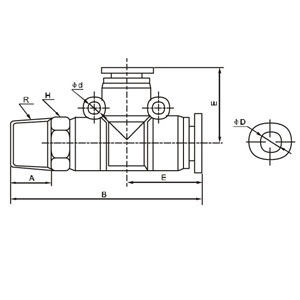

Model |
ΦD |
R |
A |
B |
E |
H2 |
Φd |
|
SPD5/32-M5 |
4 |
M5 |
4.5 |
44 |
18.4 |
10 |
/ |
|
SPD5/32-01 |
4 |
R1/8 |
7 |
44 |
18.4 |
10 |
/ |
|
SPD5/32-02 |
4 |
R1/4 |
9 |
47.5 |
18.4 |
14 |
/ |
|
SPD1/4-M5 |
6 |
M5 |
4.5 |
47 |
20.8 |
12 |
3.5 |
|
SPD1/4-01 |
6 |
R1/8 |
7 |
48.5 |
20.8 |
12 |
3.5 |
|
SPD1/4-02 |
6 |
R1/4 |
9 |
51 |
20.8 |
14 |
3.5 |
|
SPD1/4-03 |
6 |
R3/8 |
10 |
51.5 |
20.8 |
17 |
3.5 |
|
SPD1/4-04 |
6 |
R1/2 |
11 |
54 |
20.8 |
21 |
3.5 |
|
SPD5/16-01 |
8 |
R1/8 |
8 |
54 |
22.8 |
14 |
4.5 |
|
SPD5/16-02 |
8 |
R1/4 |
10 |
55.5 |
22.8 |
14 |
4.5 |
|
SPD5/16-03 |
8 |
R3/8 |
10 |
57 |
22.8 |
17 |
4.5 |
|
SPD5/16-04 |
8 |
R1/2 |
11 |
58 |
22.8 |
21 |
4.5 |
|
SPD3/8-01 |
10 |
R1/8 |
8 |
64.2 |
38.3 |
17 |
4.5 |
|
SPD3/8-02 |
10 |
R1/4 |
10 |
67 |
38.3 |
17 |
4.5 |
|
SPD3/8-03 |
10 |
R3/8 |
10 |
66 |
28.3 |
17 |
4.5 |
|
SPD3/8-04 |
10 |
R1/2 |
11 |
67 |
28.3 |
21 |
4.5 |
|
SPD1/2-01 |
12 |
R1/8 |
8 |
67 |
29.6 |
19 |
5 |
|
SPD1/2-02 |
12 |
R1/4 |
10 |
68.8 |
29.6 |
19 |
5 |
|
SPD1/2-03 |
12 |
R3/8 |
10 |
68.8 |
29.6 |
19 |
5 |
|
SPD1/2-04 |
12 |
R1/2 |
11 |
70 |
29.6 |
21 |
5 |
|
Order code |
|||
|
SPC |
1/4 |
- |
RO2 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
01:1/8" 02:1/4" 03:3/8" 04:1/2" |
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
code |
01 |
02 |
03 |
04 |
|
Size |
1/8 |
1/4 |
3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
