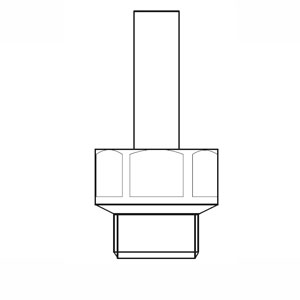

Rotary Joint AMS Male Elbow
|
Model |
||||||
|
AMS4-03 AMS4-01 AMS4-02 AMS4-02 |
AMS6-M5 AMS6-01 AMS6-02 |
AMS8-02 AMS8-03 |
AMS10-02 AMS10-03 AMS10-04 |
AMS12-03 AMS12-04 |
AMS15-03 AMS15-04 AMS18-04 |
AMS22-03 AMS22-04 |
|
Order code |
|||
|
AMS |
8 |
- |
20 |
|
Series code |
Tube size 4 6 8 10 12 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
Brass |
|
