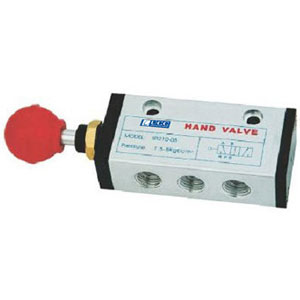

Hand Draw Valve SR Series







Order code

SR

210

-

08

Hand draw valve

Nil:2/3way

210:2/5way



Port size

08:1/4"







Specification

Model

SR-08

SR210-08

Fluid

Air(filtered through 40u filter element)

Action

Direct acting type

Effective area(mm2)

16(CV=0.89)

16(CV=0.89)

Port size

1/4"

Operating pressure

0-8.0kgf/cm2

Ambient &fluid temperature

0-60oc

Lubrication

Not required

Weight(kg)





Main parts material

Body

Aluminum alloy

Seal

NBR
