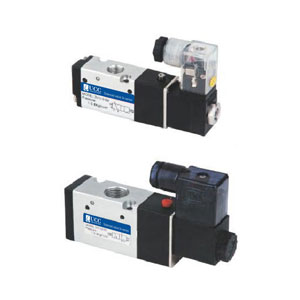

Pilot Solenoid Valve 3V Air Valve 3A







Order code

3V3A

1

10

-

06

AC110V

Series code

V: solenoid valve

A: air valve

Series

1:100 series

2:200 series

3:300 series





Position & coil

10:2/3 way single electrical control

20:2/3 way single electrical control



Port size

06:1/8"

08:1/4"

10:3/8"





Voltage

DC12V

DC24V

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







Specification

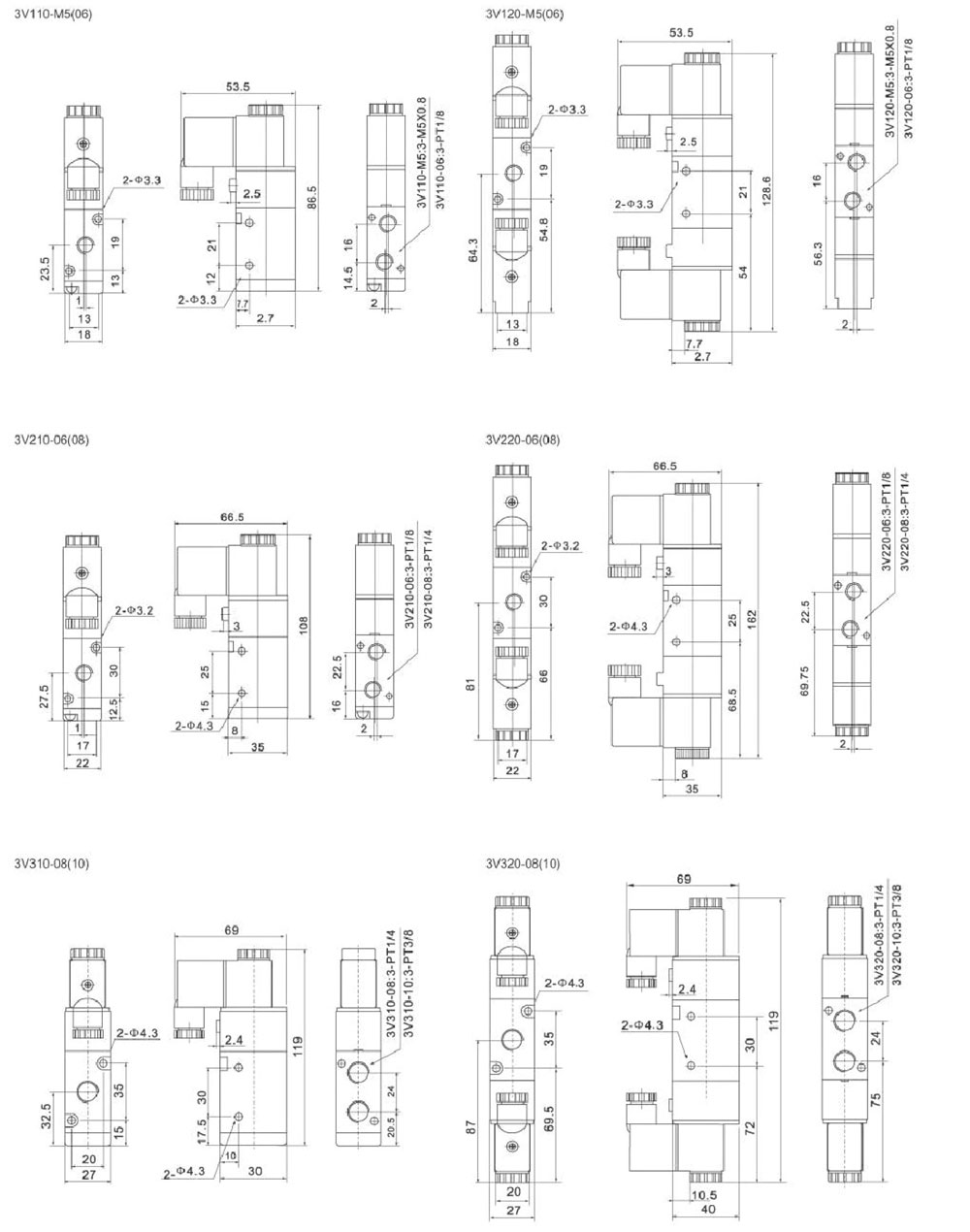

Model

3V110

-M5

3A110

-M5

3V110

-06

3A110

-06

3V210

-06

3A210

-06

3V210

-08

3A210

-08

3V310

-08

3A310

-08

3V310

-10

3A310

-10

3V120

-M5

3A120

-M5

3V120

-06

3A120

-06

3V210

-06

3A210

-06

3V210

-08

3A210

-08

3V320

-08

3A320

-08

3V320

-10

3A320

-10

Fluid

Air(filtered through 40u filter element)

Action

Initially piloted acting type

Valve type

2/3 Way

Effective area(mm2)

10mm2(CV=0.56)

7mm2(CV=0.56)

Port size

In=out=exhaust=M5

Lubrication

Not required

Operating pressure

1.5-8.0kgf/cm2

Proof pressure

10.5kgf/cm2

Ambient & fluid

temperature

5-60oc

Voltage range

±10

Power consumption

AC:1.3W DC:1.5W

Insulation grade

F grade

Protection

IP65(DIN40050)

Connection

Lead wire type or terminal type

Max. frequency

5 cycle/sec.

Min. response time

0.05sec.

Weight (kg)

























Main parts

material

Body

Aluminum alloy

Seal

NBR
