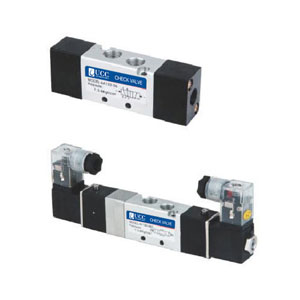

Pilot Solenoid Valve 4V1 Air Valve 4A1
|
Order code |
|||||
|
4V/ |
1 |
10 |
- |
06 |
AC110V |
|
Series code V: solenoid valve A: air valve |
Series 1:100series |
Position & coil 10:2/5 way single electrical control 20:2/5 way single electrical control 30E:3/5 way(midst closed type) single electrical control 30P:3/5 way(midst closed type) single electrical control |
|
Prot size M5:m5x0.8 06:1/8" |
Voltage DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380V 50/60Hz |
|
Specification |
|||||||||||
|
Model |
4V110 -M5 -M5 |
4V120 -M5 -M5 |
4V -M5 -M5 |
4V130E -M5 -M5 |
4V130P -M5 -M5 |
4V110 -06 -06 |
4V120 -06 -06 |
4V -06 -06 |
4V130E -06 -06 |
4V130P -06 -06 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||||||||
|
Action |
Intemally piloted acting type |
||||||||||
|
Valve type |
2/5way |
3/5way |
2/5way |
3/5way |
|||||||
|
Effective area(mm2) |
|
|
|
|
|||||||
|
Port size |
In=out=exhaust=M5 " |
In=out=exhaust=1/8" |
|||||||||
|
Lubrication |
Not required |
||||||||||
|
Operating pressure |
1.5-8.0kgf/cm2 |
||||||||||
|
Proof pressure |
10.5kgf/cm2 |
||||||||||
|
Ambient & fluid temperature |
5-60oc |
||||||||||
|
Voltage range |
±10 |
||||||||||
|
Power consumption |
AC:1.3W DC:1.5W |
||||||||||
|
Insulation grade |
F grade |
||||||||||
|
Protection |
IP65(DIN40050) |
||||||||||
|
Connection |
Lead wire type or terminal type |
||||||||||
|
Max .frequency |
5 cycle/sec. |
||||||||||
|
Min .response time |
0.05sec. |
||||||||||
|
Weight (kg) |
|
|
|
|
|
|
|
|
|
|
|
|
Main parts material |
body |
Aluminum alloy |
|||||||||
|
seal |
NBR |
||||||||||
