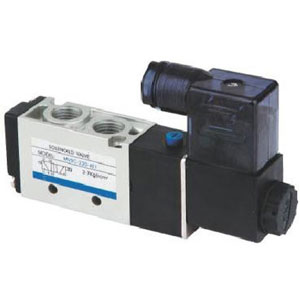

Pilot Solenoid Valve MVSC220







Order code

MVSC

220

-

4E2

C

AC110V

Series

code

Body size

22mm



Coil

4E1:single coil

4E2:double coil

Position

Nil: two position

C: three position,

Midst closed type

P: three position,

Midst exhaust type

R: three position

Midst pressure type

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







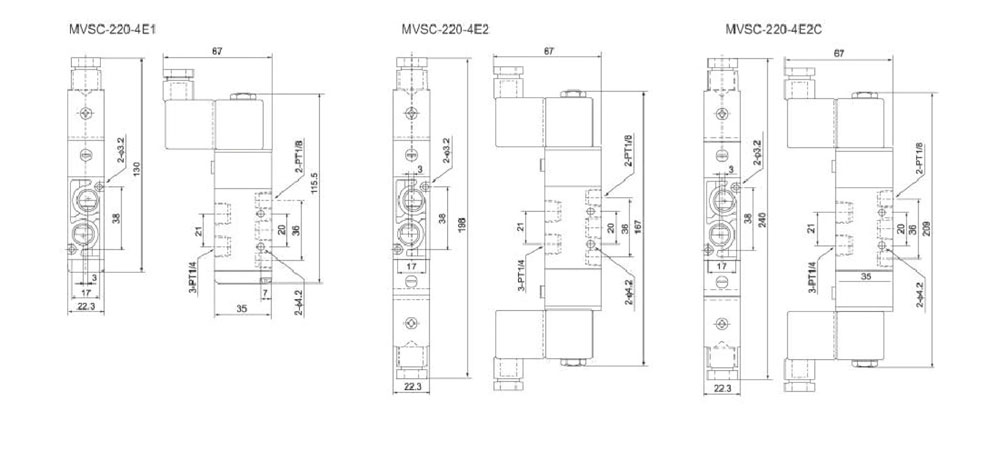

Specification

Model

MVSC-220-4E1

MVSC-220-4E2

MVSC-220-4E2C

MVSC-220-4E2P

MVSC-220-42R

Fluid

Air(filtered through 40u filter element)

Action

Initially piloted acting type

Valve type

2/5way

3/5way

Effective area(mm2)

25mm2(CV=1.4)

18mm2(CV=1.4)

Port size

In=out=exhaust=1/4

Lubrication

Not required

Operating pressure

1.5~8.0kgf/cm2

Proof pressure

10.5kgf/cm2

Ambient & fluid

temperature

5-60oc

Voltage range

±10%

Power consumption

AC:4.5W DC:3.0W

Insulation grade

F grade

Protection

IP65(DIN 40050)

Connection

Led wire type or terminal type

Max .frequency

5 cycle/sec.

Min. response time

0.05sec

Weight(kg)











Main parts

material

Body

Aluminum alloy

Seal

NBR
