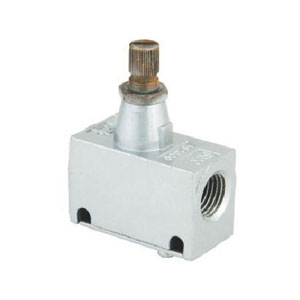

Speed Control Valve AS Series







Order code

AS

2000

-

02

Series code

Valve body

2000

3000

4000



Port size

02:1/4"

03:3/8"

04:1/2"







Specification

Model

AS2000-02

AS3000-03

AS4000-04

Free flow rate

Flow rate (l/min)

340

810

1670

Effective area(mm2)

5.2

12.3

25.5

Control flow

Flow rate (l/min)

250

810

1670

Effective area(mm2)

-

12.3

25.5

Port size

1/4"

3/8"

1/2"

Fluid

Air(filtered through 40u filter element)

Proof pressure

0.-10.kgf/cm2

Ambient & fluid temperature

0-70oc

Weight(kg)







Main parts

material

Body

Aluminum alloy

Seal

NBR

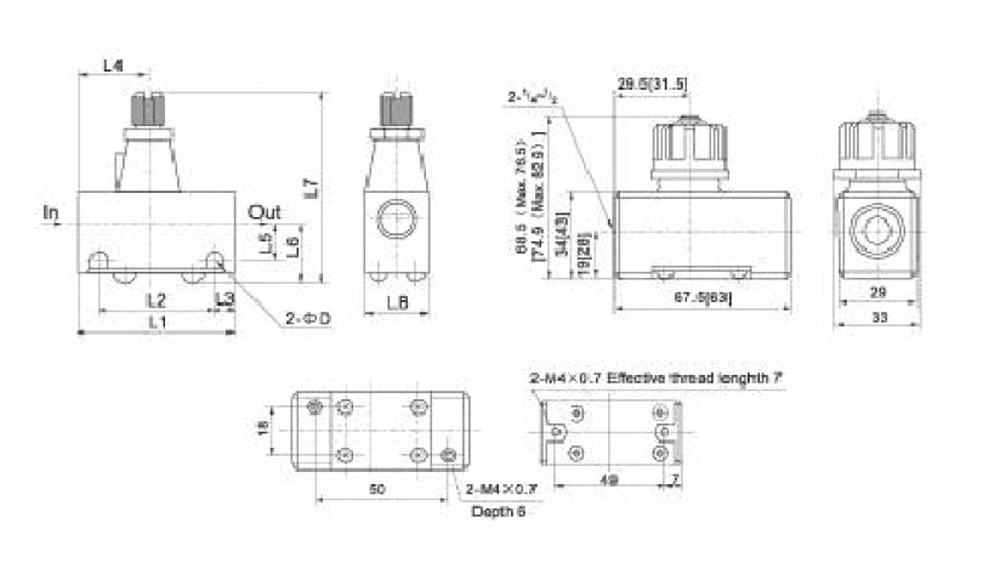

Dimension

Model

L1

L2

L3

L4

L5

L6

L7Max

L7Min.

L8

D

AS2000-02

40

60

5

23

11.5

17

56

51.5

20

4.5

AS2000-03

56

45.5

5.25

25

13.2

20.7

68

61

26

5.5
