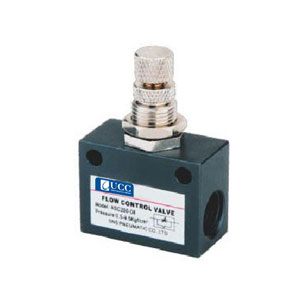

Speed Control Valve ASC100 Series
|
Order code |
|||
|
ASC |
100 |
- |
02 |
|
Series code |
Valve body 100 200 300 |
|
Port size 06:1/8" 08:1/4" 10:3/8" 15:1/2" |
|
Specification |
|||||
|
Model |
ASC 100-06 |
ASC200-08 |
ASC300-10 |
ASC400-15 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Port size |
1/8" |
1/4" |
3/8" |
1/2" |
|
|
Operating pressure |
0.5-9.5kgf/cm2 |
||||
|
Proof pressure |
15kgf/cm2 |
||||
|
Ambient & fluid temperature |
5-60oc |
||||
|
Standard flow rate |
Flow control valve |
|
|
|
|
|
One-way valve |
|
|
|
|
|
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
|

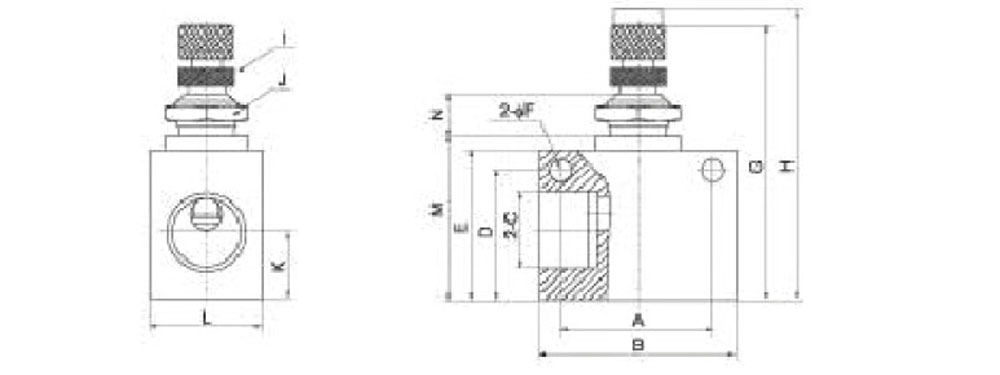

Dimension |
|||||||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
|
ASC100-06 |
22 |
32 |
1/8" |
18 |
23 |
4.3 |
46.8 |
52.3 |
M12×0.75 |
10 |
18 |
26 |
8.6 |
|
ASC200-08 |
26 |
36 |
1/4" |
23 |
27 |
4.3 |
50.8 |
56.3 |
M12×0.75 |
13.5 |
18 |
30 |
8.6 |
|
ASC300-10 |
35 |
50 |
3/8" |
32 |
37 |
5.3 |
65 |
74 |
M16×1 |
17.5 |
28 |
40.5 |
10.2 |
|
ASC400-15 |
35 |
50 |
1/2" |
32 |
37 |
5.3 |
65 |
74 |
M16×1 |
17.5 |
28 |
40.5 |
