Compact Guide Cylinder MGP Series

Order code

MGP

–

32×50

Series code

M: slide bearing type

L: Ball bushing bearing type

bore×stroke

Specification
Bore size(mm)		12	16	20	25	32	40	50	63	80	100
Fluid		Air(filtered through 40μfilter element)
Action		Double acting type
Max. operating pressure		1.0Mpa
Min. operating pressure		0.12Mpa		0.1Mpa
Ambient& fluid temperature		-10~60^oC(no free zing)
Piston speed		50-1000mm/s
Cushion		Both ends rubber cushion
Stroke length tolerance(mm²)		0+1.5mm
Lubrication		Not required
Bearing type		Slide bearing /ball bushing bearing
Non-rotating accuracy	Slide bearing	±0.08^o		±0.07^o		±0.06^o		±0.05^o		±0.04^o
	Ball bushing bearing	±0.10^o		±0.09^o		±0.08^o		±0.06^o		±0.05^o
Port size		M5×0.8		1/8				1/4		3/8
Body material		Aluminum alloy

Stroke
Bore size(mm)	Standard stroke (mm)
12	10	20	30	40	50	100	125	150	175	200	250
16	10	20	30	40	50	100	125	150	175	200	250
20	20	30	40	50	75	125	150	175	200	250	300	350	400
25	20	30	40	50	75	125	150	175	200	250	300	350	400
32	25	50	75	100	75	125	150	175	200	250	300	400
40	25	50	75	100	75	125	150	175	200	250	300	400
50	25	50	75	100	75	125	150	175	200	250	300	400
63	25	50	75	100	75	125	150	175	200	250	300	400
80	25	50	75	100	75	125	150	175	200	250	300	400
100	25	50	75	100	75	125	150	175	200	250	300	400

Applicable auto switch
Type bore size	12	16	20	25	32	40	50	63	80	100
Auto switch

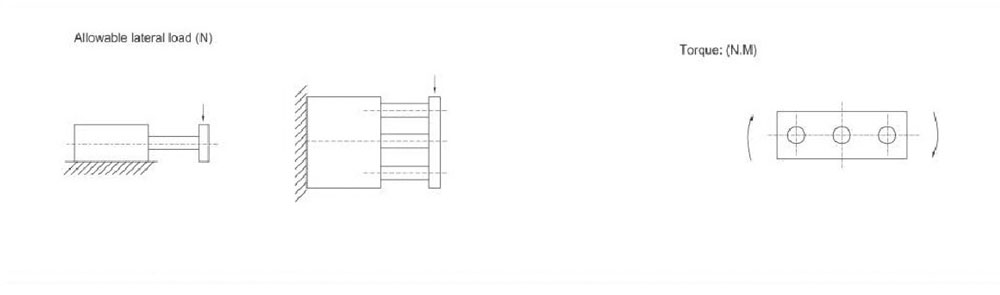

Allowable lateral load (N)
Bore size (mm)	Bearing type	Stroke(mm)
Bore size (mm)	Bearing type	10	20	30	30	40	50	75	100	125	150	175	200	250	300	350	400
12	MGPM	24	19	–	17	14	13	26	22	19	17	15	13	11	–	–	–
12	MGPL	37	27	–	22	35	30	23	18	15	12	11	10	8	–	–	–
16	MGPM	38	31	–	277	23	21	37	32	27	24	22	20	16	–	–	–
16	MGPL	54	40	–	32	54	47	35	28	23	20	17	15	12	–	–	–
20	MGPM	–	40	–	43	38	35	87	75	66	59	54	49	42	36	32	29
20	MGPL	–	58	–	48	101	90	70	58	62	54	48	43	35	30	26	23
25	MGPM	–	69	–	60	54	49	116	100	88	79	71	65	55	48	43	38
25	MGPL	–	82	–	68	132	118	93	77	80	70	62	55	45	38	33	29
32	MGPM	–	–	203	–	–	164	182	159	142	127	116	106	91	80	71	64
32	MGPL	–	–	191	–	–	157	164	144	203	186	171	158	137	121	108	98
40	MGPM	–	–	203	–	–	168	182	159	142	127	116	106	91	125	71	64
40	MGPL	–	–	190	–	–	157	163	144	203	185	171	158	137	121	108	97
50	MGPM	–	–	296	–	–	245	273	241	216	192	179	164	142	25	111	101
50	MGPL	–	–	208	–	–	173	223	199	264	242	224	207	181	159	142	128
63	MGPM	–	–	296	–	–	145	273	241	216	195	179	164	142	125	111	101
63	MGPL	–	–	206	–	–	171	221	196	262	240	221	205	178	157	140	126
80	MGPM	–	–	352	–	–	297	368	329	298	272	251	232	202	179	161	146
80	MGPL	–	–	243	–	–	373	364	331	302	278	256	238	207	181	161	143
100	MGPM	–	–	515	–	–	445	498	450	410	377	349	325	285	254	229	208
100	MGPL	–	–	360	–	–	407	503	460	423	390	362	337	294	259	230	206

Max. torque (N).m
Bore size (mm)	Bearing type	Stroke(mm)
Bore size (mm)	Bearing type	10	20	25	30	40	50	75	100	125	150	175	200	250	300	350	400
12	MGPM	0.39	0.32	–	0.27	0.24	0.21	0.43	0.36	0.31	0.27	0.24	0.22	0.19	–	–
12	MGPL	0.61	0.45	–	0.35	0.58	0.50	0.37	0.29	0.24	0.20	0.18	0.16	0.12	–	–
16	MGPM	0.69	0.58	–	0.49	0.43	0.38	0.69	0.58	0.50	0.44	0.40	0.36	0.30	–	–
16	MGPL	0.99	0.74	–	0.59	0.99	0.83	0.65	0.52	0.43	0.37	0.32	0.28	0.23	–	–
20	MGPM	–	1.05	–	0.93	0.83	0.75	1.88	1.63	1.44	1.25	1.16	1.06	0.90	0.78	0.69	0.62
20	MGPL	–	1.26	–	1.03	2.17	1.94	1.52	1.25	1.34	1.17	1.03	0.93	0.76	0.65	0.56	0.49
25	MGPM	–	1.76	–	1.55	1.38	1.25	2.96	2.57	2.26	2.02	1.83	1.67	1.42	1.24	1.09	0.98
25	MGPL	–	2.11	–	1.75	3.37	3.02	2.38	1.97	2.05	1.78	1.58	1.41	1.16	0.98	0.85	0.74
32	MGPM	–	–	6.35	–	–	5.13	5.69	4.97	4.42	3.98	3.61	3.31	2.84	2.48	2.20	1.98
32	MGPL	–	–	5.95	–	–	4.89	5.11	4.51	6.34	5.78	5.33	4.93	4.29	3.78	3.38	3.04
40	MGPM	–	–	7.00	–	–	5.66	6.27	5.48	4.87	4.38	3.98	3.65	3.13	2.74	2.43	21.19
40	MGPL	–	–	6.55	–	–	5.39	5.62	4.96	6.98	6.38	5.87	5.43	4.72	4.16	3.71	3.35
50	MGPM	–	–	13.0	–	–	10.8	12.0	10.6	9.50	8.60	7.86	7.24	6.24	5.49	4.90	4.43
50	MGPL	–	–	9.17	–	–	7.62	9.83	8.74	11.6	10.7	9.83	9.12	7.95	7.02	6.26	5.63
63	MGPM	–	–	14.7	–	–	12.1	13.5	11.9	10.7	9.69	8.86	8.16	7.04	6.19	5.52	4.99
63	MGPL	–	–	10.2	–	–	8.48	11.0	9.74	13.0	11.9	11.0	10.2	8.84	7.80	6.94	6.24
80	MGPM	–	–	21.9	–	–	18.6	22.9	20.5	18.6	17.0	15.6	14.5	12.6	11.2	10.0	9.11
80	MGPL	–	–	15.1	–	–	23.3	22.7	20.6	18.9	17.3	16.0	14.8	12.9	11.3	10.0	8.94
100	MGPM	–	–	38.8	–	–	33.5	37.5	33.8	30.9	28.4	26.2	24.4	21.4	19.1	17.2	15.7
100	MGPL	–	–	27.1	–	–	30.6	37.9	34.6	31.8	29.3	27.2	25.3	22.1	19.5	17.3	15.5

Dimension

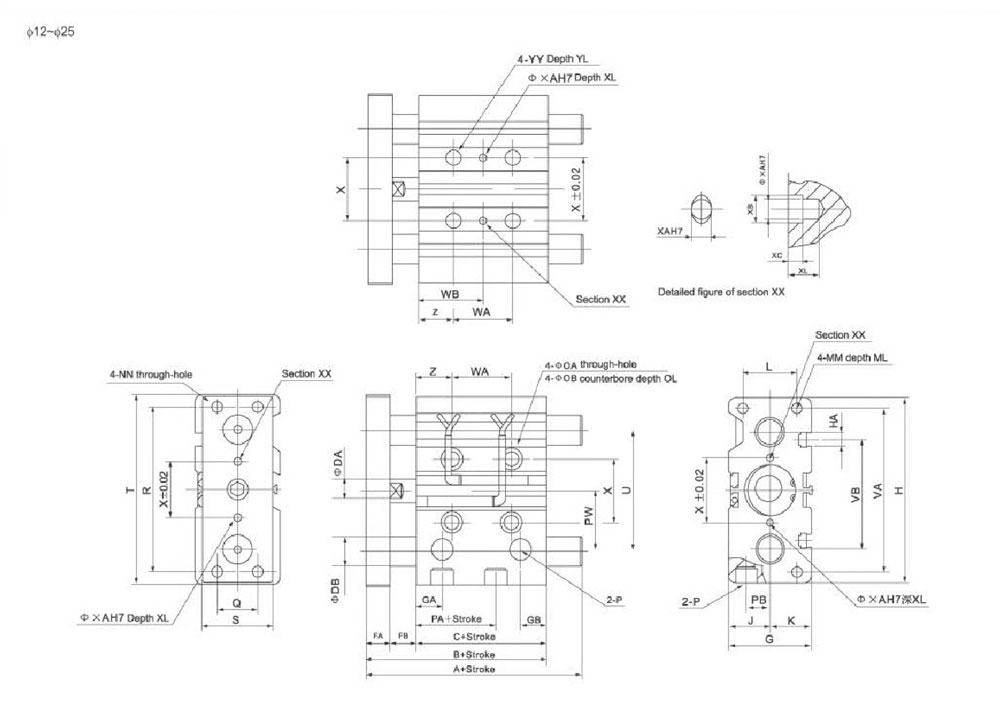

MGPM.MGPL common dimensions
Bore size (mm)	Stroke (mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	ML	MM	OA	OB	OL	P	PA	PB	PW
12	10 20 30 40 50 75 100 125 150 175 200 250	42	29	6	8	5	26	11	7.5	58	M4	13	13	18	M4*0.7	10	M4×0.7	4.3	8	4.5	M5×0.8	13	8	18
16	10 20 30 40 50 75 100 125 150 175 200 250	46	33	8	8	5	30	11	8	65	M4	15	15	22	M5*0.8	12	M5×0.8	4.3	8	4.5	M5×0.8	15	10	19
20	200 30 40 50 75 100 125 150 175 200 250 200 350 400	53	37	10	10	6	36	10.5	8.5	83	M5	18	18	24	M5*0.8	13	M5×0.8	5.6	9.5	5.5	1/8	12.5	10.5	25
25	200 30 40 50 75 100 125 150 175 200 250 200 350 400	53.5	37.5	12	10	6	42	11.5	9	93	M5	21	21	30	M6*1.0	15	M6×1.0	5.6	9.5	5.5	1/8	12.5	13.5	28.5

Dimension
Bore size (mm)	R	S	T	U	VA	VB	WA					WB					X	XA	XB	XC	XL	YY	XL	Z
Bore size (mm)	R	S	T	U	VA	VB	30st less	30st 100st	100st 200st	200st 300st	Over 300st	30st less	30st 100st	100st 200st	200st 300st	Over 300st	X	XA	XB	XC	XL	YY	XL	Z
12	48	22	56	41	50	37	20	40	110	220	–	15	25	60	105	–	23	3	3.5	3	6	M5×0.8	10	5
16	54	25	62	46	56	38	24	44	110	200	–	17	27	60	105	–	27	3	3.5	3	6	M5×0.8	10	5
20	70	30	81	54	72	44	24	44	120	200	300	29	39	77	117	167	28	3	3.5	3	6	M6×1.0	12	17
25	78	38	91	64	82	50	24	44	120	200	300	29	39	77	117	167	34	4	4.5	3	6	M6×1.0	12	17

MGPM(slide bearing) A.DB.E dimensions
Bore size (mm)	A			DB	E
Bore size (mm)	50st Or less	50st- 100st	Over 100st	DB	50st Or less	50st- 100st	Over 100st
12	42	60.5	85	8	0	18.5	43
16	46	64.5	95	10	0	18.5	49

MGPM(ball bushing bearing) A.DB.E dimensions
Bore size (mm)	A			DB	E
Bore size (mm)	50st Or less	50st- 100st	Over 100st	DB	50st Or less	50st- 100st	Over 100st
12	43	55	85	6	1	13	43
16	49	65	95	8	3	19	49

MGPM(slide bearing) A.DB.E dimensions
Bore size (mm)	A			DB	E
Bore size (mm)	50st Or less	50st- 100st	Over 100st	DB	50st Or less	50st- 100st	Over 100st
20	53	84.5	122	12	0	31.5	69
25	53.5	85	122	16	0	31.5	68.5

MGPM(ball bushing bearing) A.DB.E dimensions
Bore size (mm)	A				DB	E
Bore size (mm)	50st Or less	50st- 100st	Over 100st	Over 200st	DB	50st Or less	50st- 100st	Over 100st	Over 200st
20	63	80	104	122	10	10	27	51	69
25	69.5	85.5	104.5	122	13	16	32	51	68.5

Dimension

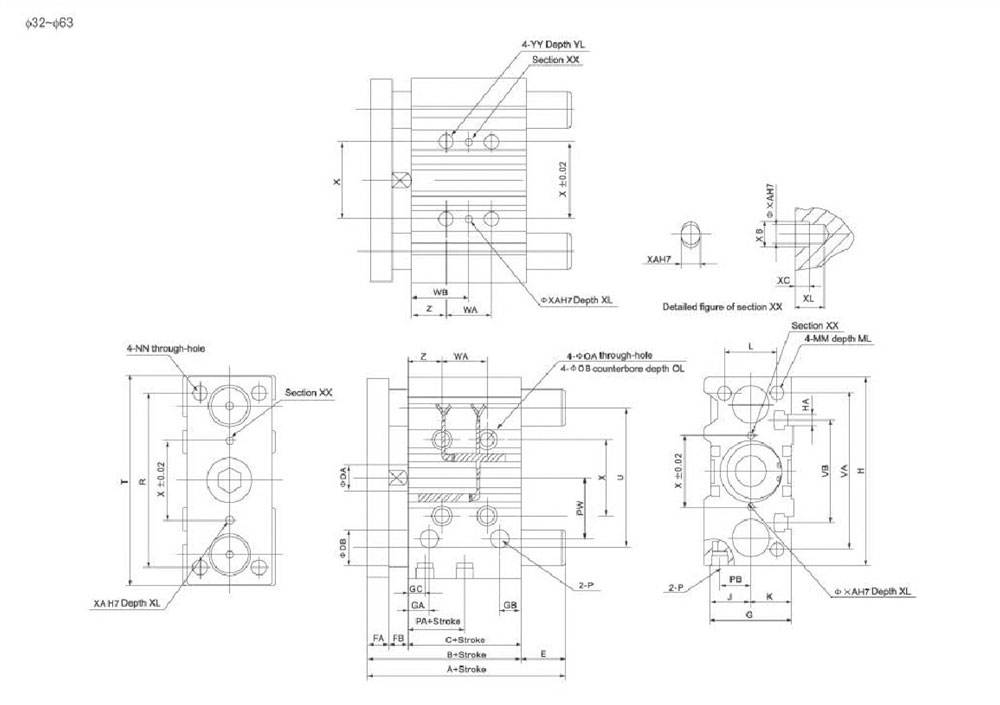

MGPM.MGPL common dimensions
Bore size (mm)	Stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	ML	MM	OA	OB	OL	P	PA	PB	PW	Q
32	10 20 30 40 50 75 100 125 150 175 200 250	59.5	37.5	16	12	10	48	12.5	9	12.5	112	M6	24	24	34	M8*1.25	20	M8*1.25	20	11	7.5	1/8	7	15	34	30
40	10 20 30 40 50 75 100 125 150 175 200 250	66	44	16	12	10	54		10	14		M6	27	27	40	M8*1.25	20	M8*1.25	20	11	7.5	1/8	13	18	38	30
50	20,30,40,50,75,100, 125, 150 175 200 250 200 350 400	72	44	20	16	12	64		11	12	120	M6	32	32	46	M10*1.5	22	M10*1.5	22	14	9	1/4	9	21.5	47	40
63	20,30,40,50,75,100, 125, 150 175 200 250 200 350 400	77	49	20	16	12	78		13.5	16.5	M10	M10	39	39	58	M10*1.5	22	M10*1.5	22	14	9	1/4	14	28	55	50

Dimension
Bore size (mm)	R	S	T	U	VA	VB	WA					WB					X	XA	XB	XC	XL	YY	XL	Z
Bore size (mm)	R	S	T	U	VA	VB	30st less	30st 100st	100st 200st	200st 300st	Over 300st	30st less	30st 100st	100st 200st	200st 300st	Over 300st	X	XA	XB	XC	XL	YY	XL	Z
32	96	44	110	78	98	63	24	48	124	200	300	33	45	83	121	171	42	4	4.5	3	6	M8*1.25	16	21
40	104	44	118	86	106	72	24	48	124	200	300	34	46	84	122	172	50	4	4.5	3	6	M8*1.25	16	22
50	130	60	146	110	130	92	24	48	124	200	300	36	48	86	124	174	66	5	6	4	8	M10*1.5	20	24
63	130	70	158	124	142	110	28	52	128	200	300	38	50	88	124	174	80	5	6	4	6	M10*1.5	20	24

MGPM(slide bearing) A.DB.E dimensions
Bore size (mm)	A			DB	E
Bore size (mm)	50st Or less	50st- 100st	100st	DB	50st Or less	50st- 100st	Over 100st
32	97	102	140	20	37.5	42.5	80.5
40	97	102	140	20	31	36	71
60	106.5	118	161	25	34.5	46	89
63	106.5	118	161	25	29.5	41	84

MGPM(ball bushing bearing) A.DB.E dimensions
Bore size (mm)	A				DB	E
Bore size (mm)	50st Or less	50st- 100st	Over 100st	Over 200st	DB	50st Or less	50st- 100st	Over 100st	Over 200st
32	81	98	118	140	16	21.5	38.5	58.5	80.5
40	81	98	118	140	16	15	32	52	74
50	93	114	134	161	20	21	42	62	89
63	93	144	134	161	20	16	37	57	84

Dimension
MGPM.MGPL common dimensions
Bore size (mm)	Stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	ML	MM	OA	OB	OL	P
80	25 50 75 100 125 150 175 200 250 300 350 400	96.5	56.5	25	22	18	91.5	19	15.5	14.5	202	M12	45.5	46	54	M12*1.75	25	M12*1.75	10.6	17.5	8	3/8
100	25 50 75 100 125 150 175 200 250 300 350 400	116	66	30	25	25	11.5	23	19	18	240	M14	55.5	56	62	M14*2.0	31	M14*2.0	12.5	20	8	3/8

Dimension
Bore size(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	WA					WB					X	YY	YC	XL
Bore size(mm)	PA	PB	PW	Q	R	S	T	U	VA	VB	30st less	30st 100st	100st 200st	200st 300st	Over 300st	30st less	30st 100st	100st 200st	200st 300st	Over 300st
80	14.5	25.5	74	52	174	75	198	156	180	140	28	52	128	200	300	42	54	92	128	178	100	M12*1.75	24	28
100	17.5	32.5	89	64	210	90	236	188	210	166	48	72	148	220	320	35	47	85	121	171		M14*2.0	28	11

MGPM(slide bearing) A.DB.E dimensions
Bore size (mm)	A			DB	E
Bore size (mm)	25.50ST	50st- 100st	over 200st	DB	25.50ST	50st- 100st	over 200st
80	115	142	193	30	18.5	45.5	96.5
100	137	162	203	36	21	46	87

MGPM(slide bearing) A.DB.E dimensions
Bore size (mm)	A				DB	E
Bore size (mm)	25.50ST	50st-	50st- 200st	over 200st	DB	25.50ST Or less	50st- 100st	50st- 200st	over 200st
80	109.5	130	160	193	5	13	33.5	63.5	96.5
100	121	147	180	203	30	5	31	64	67
