Order code |
|||
|
MD |
25×50 |
– |
S |
|
Basic type |
bore×stroke |
Built-in magnets Nil: without S: with |
|
|
Specification |
||||||
|
Bore size(mm) |
6 |
10 |
16 |
20 |
25 |
32 |
|
Action |
Double acting type |
|||||
|
Fluid |
Air (filtered through 40u filter element) |
|||||
|
Operating pressure |
0.1-0.9Mpa(1-9Kgf/cm2) |
|||||
|
Proof pressure |
1.05Mpa(10.5Kgf/cm2) |
|||||
|
Ambient & fluid temperature |
-5-70OC |
|||||
|
Cushion type |
Fixed bumper |
|||||
|
Port size |
M5 |
1/8" |
||||
|
Body material |
Aluminum alloy |
|||||
|
Specification |
|||||||||||
|
Bore size(mm) |
Standard stroke |
Auto switch |
|||||||||
|
6 |
5 |
10 |
15 |
20 |
25 |
30 |
CS1-G |
||||
|
10 |
5 |
10 |
15 |
20 |
25 |
30 |
|||||
|
20 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
25 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|
32 |
5 |
10 |
15 |
20 |
25 |
30 |
35 |
40 |
45 |
50 |
|
|

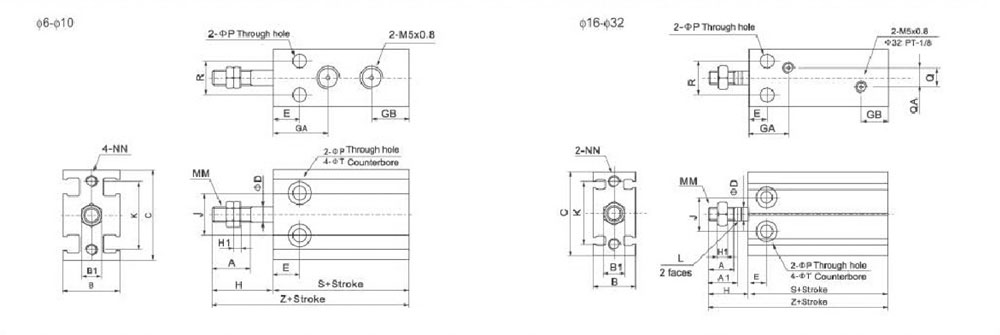

Dimension |
||||||||||||||
|
Bore size(mm) |
A |
A– |
B |
B1 |
C |
D |
E |
GA |
GB |
H |
H1 |
J |
K |
L |
|
6 |
7 |
– |
16.5 |
5.5 |
22 |
3 |
7 |
15 |
10 |
13 |
1.8 |
10 |
17 |
– |
|
10 |
10 |
– |
16.5 |
7 |
24 |
4 |
7 |
16.5 |
10 |
16 |
2.4 |
11 |
18 |
– |
|
16 |
11 |
12.5 |
20 |
8 |
32 |
6 |
7 |
15 |
10 |
16 |
4 |
14 |
25 |
5 |
|
20 |
12 |
14 |
26 |
10 |
40 |
8 |
9 |
20.5 |
11 |
19 |
5 |
16 |
30 |
6 |
|
25 |
15.5 |
18 |
32 |
12 |
50 |
10 |
10 |
23.5 |
8.2 |
23 |
6 |
20 |
38 |
8 |
|
32 |
19.5 |
22 |
40 |
17 |
62 |
12 |
11 |
22.5 |
10.5 |
27 |
6 |
24 |
48 |
10 |
|
Dimension |
|||||||||||
|
Bore size(mm) |
MM |
NN |
P |
Q |
QA |
R |
T |
Without Magnet Z |
Without Magnet S |
Without magnet Z |
Without magnet S |
|
6 |
M3×0.5 |
M3×0.5Depth5 |
3.2 |
– |
– |
7 |
6Depth4.8 |
33 |
46 |
33 |
46 |
|
10 |
M4×0.7 |
M3×0.5Depth5 |
3.2 |
– |
– |
9 |
6Depth5.8 |
36 |
52 |
36 |
52 |
|
16 |
M5×0.8 |
M4×0.7Depth5 |
4.5 |
3 |
1.5 |
12 |
7.6Depth6.5 |
30 |
46 |
40 |
56 |
|
20 |
M6×1.0 |
M5×0.8Depth8 |
5.5 |
9 |
4.5 |
16 |
9.3Depth8 |
36 |
55 |
46 |
65 |
|
25 |
M8×1.25 |
M5×0.8Depth8 |
5.5 |
12 |
6 |
20 |
9.3Depth9 |
40 |
63 |
50 |
73 |
|
32 |
M10×1.25 |
M6×1.0Depth8 |
6.6 |
13.5 |
4.5 |
24 |
11Depth11.5 |
42 |
69 |
52 |
79 |
