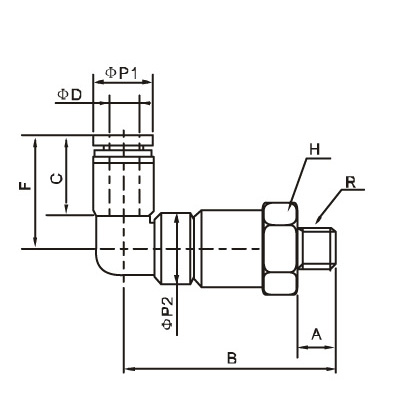

Dimension |
|||||||||
|
model |
ΦD |
R |
F |
C |
B |
P2 |
A |
H |
RPM |
|
NHRL04-M5 |
4 |
M5 |
20.2 |
16 |
33 |
10 |
3.5 |
12 |
1500 |
|
NHRL04-M6 |
4 |
M6 |
20 |
16 |
34 |
10 |
4.5 |
12 |
1500 |
|
NHRL04-01 |
4 |
R1/8 |
20.2 |
16 |
37.5 |
10 |
8 |
12 |
1500 |
|
NHRL06-01 |
6 |
R1/8 |
22.9 |
17 |
43.2 |
12.4 |
8 |
17 |
1200 |
|
NHRL06-02 |
6 |
R1/4 |
22.9 |
17 |
46.2 |
12.4 |
11 |
17 |
1200 |
|
NHRL08-01 |
8 |
R1/8 |
25.9 |
18.5 |
44.2 |
14.4 |
8 |
17 |
1200 |
|
NHRL08-02 |
8 |
R1/4 |
25.9 |
18.5 |
47.2 |
14.4 |
11 |
17 |
1200 |
|
NHRL10-03 |
10 |
R3/8 |
29.8 |
21 |
55.3 |
17.6 |
12 |
24 |
1000 |
|
NHRL10-04 |
10 |
R1/2 |
29.8 |
21 |
58.3 |
15 |
24 |
1000 |
|
|
NHRL12-03 |
12 |
R3/8 |
33.7 |
22.5 |
57 |
21 |
12 |
24 |
1000 |
|
NHRL12-04 |
12 |
R1/2 |
33.7 |
22.5 |
60 |
21 |
15 |
24 |
1000 |
|
Order code |
|||
|
NHRL |
8 |
– |
20 |
|
Series code |
4 6 8 10 1214 16 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|||||||
|
Media |
Air |
||||||
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
||||||
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
||||||
|
Ambient &fluid temperature |
0-60oc |
||||||
|
Recommended tubes |
Urethane tube, nylon tube |
||||||
|
Material |
Zinc alloy |
||||||
|
4 |
6 |
8 |
10 |
12 |
|||
|
NRC,NRL |
500 |
500 |
400 |
300 |
250 |
||
|
NHRC,NHRL |
1500 |
1200 |
1200 |
1000 |
1000 |
||
