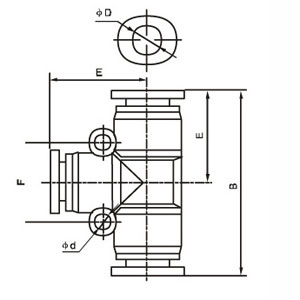

Model |
ΦD |
B |
E |
F |
Φd |
|
SPE5/32 |
4 |
36.6 |
18.3 |
/ |
/ |
|
SPE/4 |
6 |
41 |
20.5 |
16 |
3.5 |
|
SPE5/16 |
8 |
46 |
23 |
20 |
4.5 |
|
SPE3/8 |
10 |
56.6 |
28.3 |
24 |
4.5 |
|
SPE1/2 |
12 |
58.6 |
29.3 |
27.7 |
5 |
|
Order code |
||
|
SPE |
– |
1/4 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
