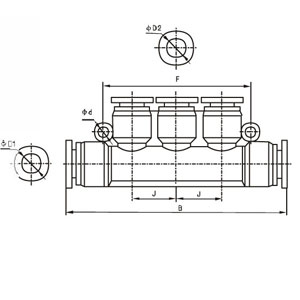

Model |
ΦD1 |
ΦD2 |
B |
F |
J |
Φd |
|
SPWG1/4-5/32 |
6 |
4 |
79 |
54.8 |
17.7 |
4 |
|
SPWG5/16-1/4 |
8 |
6 |
80 |
54.8 |
17.7 |
4 |
|
SPWG3/8-5/16 |
10 |
8 |
96 |
62.4 |
20.2 |
4 |
|
SPWG1/2-3/8 |
12 |
10 |
112 |
71 |
23 |
4 |
|
SPWG5/16-5/32 |
8 |
4 |
81 |
56.5 |
18 |
4.5 |
|
SPWG3/8-1/4 |
10 |
6 |
96 |
62.4 |
20.2 |
4 |
|
SPWG1/2-5-16 |
12 |
8 |
112 |
71 |
23 |
4 |
|
Order code |
||
|
SPWG |
– |
1/4 |
|
Series code |
Port size 2/32 3/16 1/4 5/16 3/8 1/2 |
|
|
code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Φ5/32 |
Φ3/16 |
Φ1/4 |
Φ5/16 |
Φ3/8 |
Φ1/2 |
|
Specification |
||
|
Media |
Air |
|
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
|
Pressure range |
Positive pressure |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Negative pressure |
-99.99-0kpa(750-0mmHg) |
|
|
Ambient &fluid temperature |
0-60oc |
|
|
Recommended tubes |
Urethane tube, nylon tube |
|
|
Material |
pu |
|
