Order code |
|||||
|
MVSC |
220 |
– |
4E2 |
C |
AC110V |
|
Series code |
Body size |
Coil 4E1:single coil 4E2:double coil |
Position Nil: two position C: three position, Midst closed type P: three position, Midst exhaust type R: three position Midst pressure type |
Voltage DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380V 50/60Hz |
|
|
Specification |
||||||
|
Model |

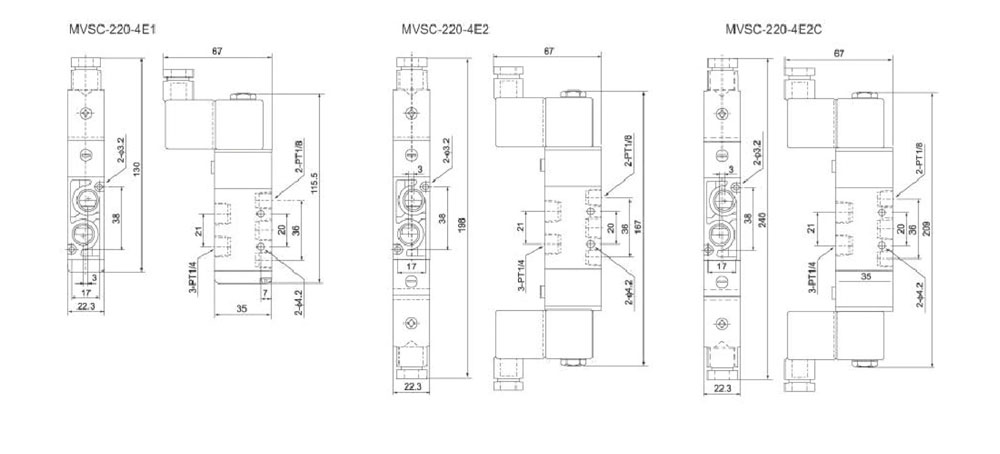

MVSC-220-4E1 |
MVSC-220-4E2 |
MVSC-220-4E |
MVSC-220-4E2P |
MVSC-220-42R |
|
|
Fluid |
Air(filtered through 40u filter element) |
|||||
|
Action |
Initially piloted acting type |
|||||
|
Valve type |
2/5way |
3/5way |
||||
|
Effective area(mm2) |
|
|
||||
|
Port size |
In=out=exhaust=1/4 |
|||||
|
Lubrication |
Not required |
|||||
|
Operating pressure |
1.5~8.0kgf/cm2 |
|||||
|
Proof pressure |
10.5kgf/cm2 |
|||||
|
Ambient & fluid temperature |
5-60oc |
|||||
|
Voltage range |
±10% |
|||||
|
Power consumption |
AC:4.5W DC:3.0W |
|||||
|
Insulation grade |
F grade |
|||||
|
Protection |
IP65(DIN 40050) |
|||||
|
Connection |
Led wire type or terminal type |
|||||
|
Max .frequency |
5 cycle/sec. |
|||||
|
Min. response time |
0.05sec |
|||||
|
Weight(kg) |
||||||
|
Main parts material |
Body |
Aluminum alloy |
||||
|
Seal |
NBR |
|||||
