Order code |
||
|
QTY |
– |
15 |
|
Regulator |
Port size 08:1/4" 10:3/8" 15:3/4" 20:1/2" 25:1" 40:11/2" 50:2" |
|
|
Specification |
|||||||
|
Model |
QTY-08 |
QTY-10 |
QTY-15 |
QTY-20 |
QTY-25 |
QTY-40 |
QTY-50 |
|
Port size RC(L/Min) |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
11/2" |
2" |
|
Fluid |
Air |
||||||
|
Adjustable pressure range |
0.5-8kgf/cm2 |
||||||
|
Max. adjustable pressure |
9.5kgf/cm2 |
||||||
|
Proof pressure |
15.0kgf/cm2 |
||||||
|
Ambient & fluid temperature |
5-60oc |
||||||
|
Weight(kg) |
|||||||
|
Body main parts |
Aluminum alloy |
||||||
|

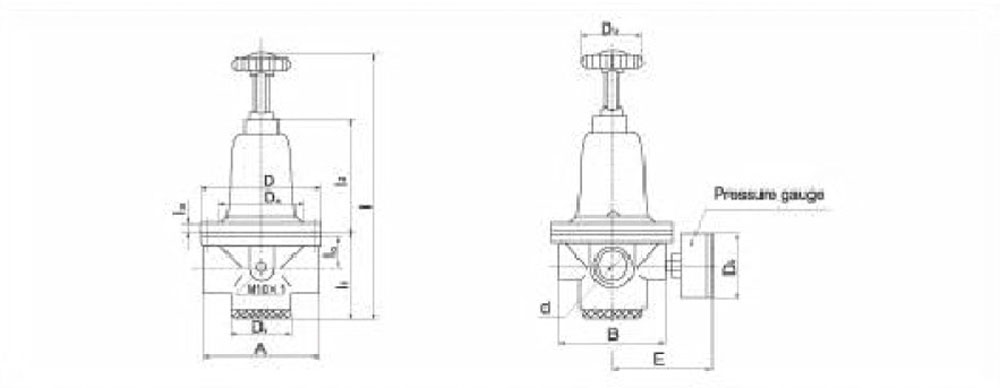

Dimension |
||||||||||||||
|
Model |
Port size |
A |
B |
D |
D1 |
D2 |
D3 |
D4 |
L0 |
L1 |
L2 |
L3 |
E |
Lmax |
|
QTY–8 |
1/4" |
74 |
64 |
Ф80 |
Ф34 |
Ф60 |
Ф58 |
Ф60 |
16 |
52 |
69 |
8 |
80 |
173 |
|
QTY–10 |
3/8" |
74 |
64 |
Ф80 |
Ф34 |
Ф60 |
Ф58 |
Ф60 |
16 |
52 |
69 |
8 |
80 |
173 |
|
QTY–15 |
1/2" |
74 |
64 |
Ф80 |
Ф34 |
Ф60 |
Ф58 |
Ф60 |
21 |
58 |
69 |
8 |
80 |
181 |
|
QTY–20 |
3/4" |
109 |
113 |
Ф120 |
Ф60 |
Ф90 |
Ф58 |
Ф90 |
30 |
78 |
108 |
9 |
100 |
250 |
|
QTY–25 |
1" |
109 |
113 |
Ф120 |
Ф60 |
Ф90 |
Ф58 |
Ф90 |
30 |
78 |
108 |
9 |
100 |
250 |
|
QTY–40 |
11/2" |
136 |
104 |
Ф120 |
Ф60 |
Ф90 |
Ф58 |
Ф90 |
40 |
100 |
108 |
9 |
100 |
280 |
