Order code |
||
|
BQE |
– |
02 |
|
Series code |
Port size 02:1/4" 03:3/8" 04:1/2" |
|
|
Specification |
||||
|
Model |
BQE-02 |
BQE-03 |
BQE-04 |
|
|
Fluid |
Air(filtered through 40u filter element) |
|||
|
Port size |
1/4" |
3/8" |
1/2" |
|
|
Proof pressure |
0-10kgf/cm2 |
|||
|
Ambient & fluid temperature |
0-70oc |
|||
|
Weight(kg) |
||||
|
Main parts material |
Body |
Aluminum alloy |
||
|
Seal |
NBR |
|||
|

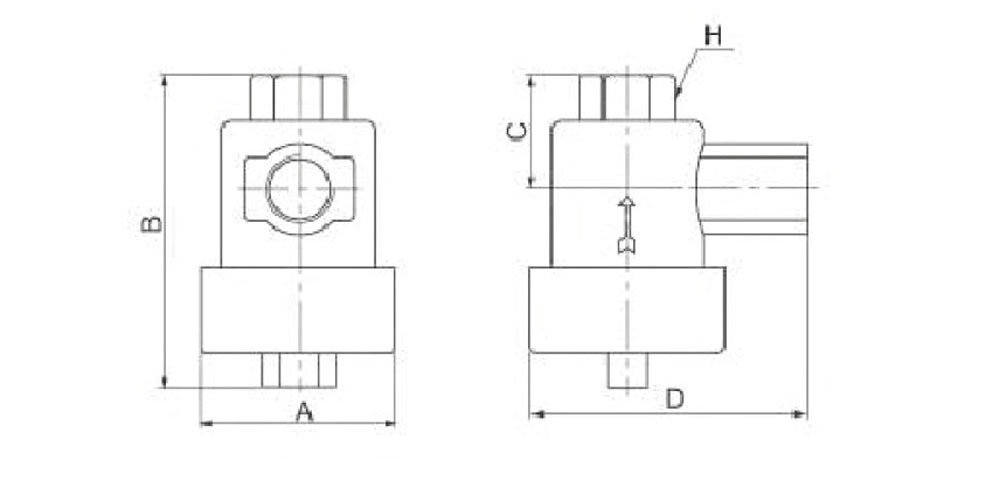

Dimension |
|||||
|
Model |
A |
B |
C |
D |
H |
|
BQE-02 |
33 |
54 |
21 |
41 |
19 |
|
BQE-03 |
38 |
60 |
24 |
41 |
22 |
|
BQE-04 |
43 |
67 |
40 |
51.2 |
24 |
