Order code |
||
|
CY1R |
– |
25×300 |
|
Series code |
Bore×stroke |
|
|
Specification |
||||
|
Bore size(mm) |
6 |
10 |
50 |
63 |
|
Fluid |
Air(filtered through 40u filter element) |
|||
|
|
Double acting type |
|||
|
Max. operating pressure |
0.7Mpa |
|||
|
Min. operating pressure |
0.18Mpa |
|||
|
Ambient& fluid temperature |
-10~60oc(no freezing) |
|||
|
Piston speed |
50~ |
|||
|
Cushion |
Both ends rubber cushion |
|||
|
Stroke length tolerance(mm) |
0-250+1.0/0 251-1000+1.4/0 1001~+1.8/0 |
|||
|
lubrication |
Not required |
|||
|
Port size |
M5×0.8 |
1/ |
1/ |
|
|
Mounting orientation |
Free |
|||
|
Body material |
Stainless steel |
|||
|
Stroke |
|||||||||||||||||
|
Bore size(mm) |
Standard stroke(mm) |
Maximum stroke (mm) |
Allowable stroke(mm0 |
||||||||||||||
|
6 |
50 |
100 |
150 |
200 |
300 |
300 |
|||||||||||
|
10 |
50 |
100 |
150 |
200 |
250 |
300 |
500 |
500 |
|||||||||
|
50 |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
2000 |
1500 |
|
63 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
2000 |
1500 |
|
|
Applicable auto switch |
||||
|
Type bore size |
6 |
10 |
50 |
63 |
|
Auto switch |
D-A |
|||
|

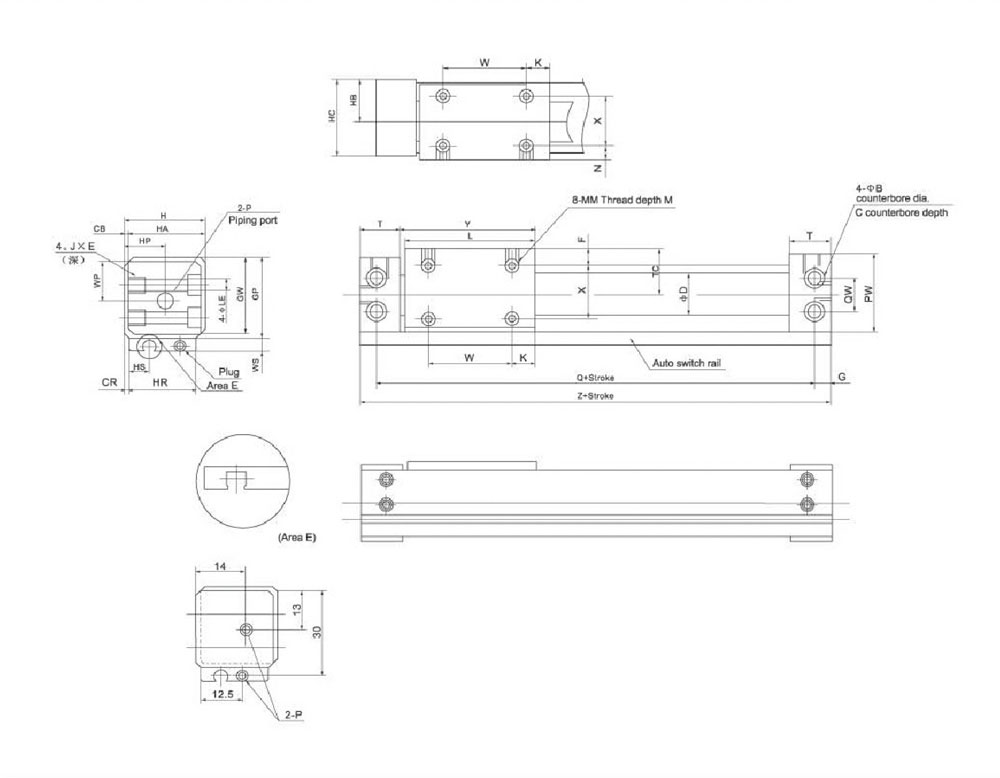

Dimension |
||||||||||||||||||||
|
model |
A |
B |
C |
CB |
CR |
D |
F |
G |
GP |
GW |
H |
HA |
HC |
HP |
HR |
HS |
HT |
J×K |
K |
|
|
CYIR6 |
-300 |
9 |
6.5 |
3.2 |
2 |
0.5 |
7.6 |
5.5 |
4 |
20 |
18.5 |
17 |
17 |
18 |
9 |
17 |
6 |
7 |
M4×0.7×6 |
7 |
|
CYIR10 |
-500 |
9 |
6.5 |
3.2 |
2 |
0.5 |
12 |
6.5 |
4 |
27 |
25.5 |
24 |
24 |
24 |
14 |
24 |
5 |
14 |
M4×0.7×6 |
9 |
|
CYIR50 |
-2000 |
14 |
14 |
8.3 |
5 |
2 |
53 |
17 |
8.5 |
83 |
81.5 |
80 |
80 |
45 |
45 |
80 |
9 |
45 |
M10×1.5×15 |
25 |
|
CYIR63 |
-2000 |
15 |
14 |
8.3 |
5 |
3 |
66 |
18 |
8.5 |
95 |
93.5 |
92 |
92 |
51 |
51 |
90 |
9.5 |
52 |
M10×1.5×15 |
24 |
|
Dimension |
|||||||||||||||||||
|
model |
L |
LD |
M |
MM |
N |
P |
PW |
Q |
QW |
T |
W |
WS |
X |
Y |
Z |
HB |
TC |
WP |
|
|
CYIR6 |
-300 |
34 |
3.5 |
3.5 |
M3×0.5 |
3.5 |
M5×0.8 |
19 |
64 |
10 |
17.5 |
20 |
6 |
10 |
35.5 |
72 |
10.5 |
10.5 |
9.5 |
|
CYIR10 |
-500 |
38 |
3.5 |
4 |
M3×0.5 |
4.6 |
M5×0.8 |
26 |
68 |
14 |
17.5 |
20 |
8 |
15 |
39.5 |
76 |
14 |
14 |
13 |
|
CYIR50 |
-2000 |
110 |
8.6 |
10 |
M8×1.25 |
15 |
RC1/4 |
82 |
159 |
48 |
30 |
60 |
10 |
50 |
113 |
176 |
45 |
42 |
41 |
|
CYIR63 |
-2000 |
118 |
8.6 |
10 |
M8×1.25 |
16 |
RC1/4 |
94 |
171 |
60 |
32 |
70 |
10 |
60 |
121 |
188 |
51 |
48 |
47 |
|

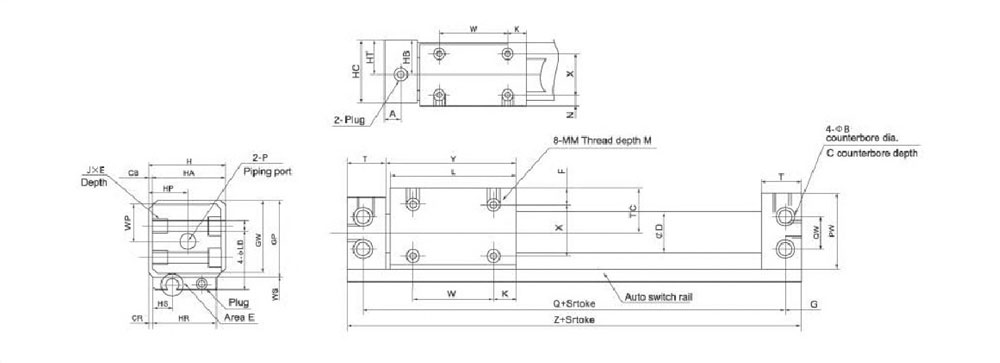

Dimension |
||||||||||||||||||
|
Model |
B |
C |
CB |
CR |
D |
F |
G |
GP |
GW |
H |
HA |
HC |
HP |
HS |
HT |
J×K |
K |
|
|
CY1R10 |
-500 |
6.5 |
3.2 |
3.2 |
2 |
12 |
6.5 |
4 |
27 |
25.5 |
24 |
24 |
25 |
– |
5 |
– |
M4×0.7×6 |
9 |
|
CY1R50 |
-2000 |
14 |
8.2 |
8.2 |
5 |
53 |
17 |
8.5 |
83 |
81.5 |
80 |
80 |
84 |
32 |
9 |
56 |
M10×1.5×15 |
25 |
|
CY1R63 |
-2000 |
14 |
8.2 |
8.2 |
5 |
66 |
18 |
8.5 |
95 |
93.5 |
92 |
92 |
96 |
35 |
9.5 |
63.5 |
M10×1.5×15 |
24 |
|
Dimension |
||||||||||||||||||
|
Model |
L |
LD |
M |
MM |
N |
P |
PW |
Q |
QW |
W |
WS |
X |
Y |
Z |
HB |
TC |
WP |
|
|
CY1R10 |
-500 |
38 |
3.5 |
4 |
M3×0.5 |
4.6 |
M5×0.8 |
26 |
68 |
14 |
20 |
8 |
15 |
39.5 |
76 |
14 |
14 |
13 |
|
CY1R50 |
-2000 |
110 |
8.6 |
10 |
M8×1.25 |
15 |
RC1/4 |
82 |
159 |
48 |
60 |
10 |
50 |
113 |
176 |
45 |
42 |
41 |
|
CY1R63 |
-2000 |
118 |
8.6 |
10 |
M8×1.25 |
16 |
RC1/4 |
94 |
171 |
60 |
70 |
10 |
60 |
121 |
188 |
51 |
48 |
47 |
