Manifold

November 17, 2011

PneumaticsChina

Order code

100M

–

□F

Model

100M:100 series valve

200M:200 series valve

300M:300 series valve

400M:400 series valve

Stations

100M:11-13

200M:1-16

300M:1-12

400M:1-7

Specification
Manifold/valve model	4V1	4A1	4V2	4A2	4V3	4A3	4V4	4A4
100M	●
200M			●
300M					●
400M							●
Weight(kg)
Main parts material

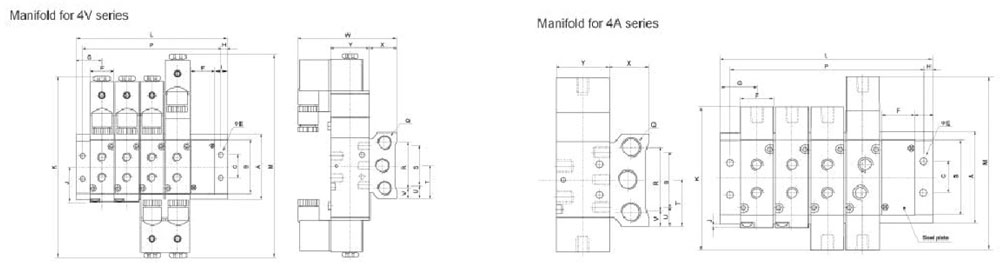

Dimension Manifold for 4v series
Model	A	B	C	E	F	G	H	I	J	K	L
Model	A	B	C	E	F	G	H	I	J	K	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F
100M– F	58	43.2	20	4.2	18.3	19	5	9.9	-0.8	139.4	38	57	76	95	114	133	152	171	190	209	228	247	266	285	304	323
200M– F	61	50.7	21	4.3	22.4	23	6	11.8	1.2	170	46	69	92	115	138	161	184	207	230	253	276	299	322	345	368	391
300M– F	75	64.8	26	4.5	27.3	27	6	13.4	2.5	188.8	54	82	110	138	166	194	222	250	278	306	334	362	390	418	446	474
400M– F	104	94.5	32	5.5	34.3	31.5	7	18.4	5	221.8	71	98	133	168	203	238	173	308	343	378	413	448	483	518	553	688

Model	m	P																Q	R	S	T	U	V	W	X	Y
Model	m	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	Q	R	S	T	U	V	W	X	Y
100M– □F	154.4	28	47	66	85	104	123	142	161	180	199	218	237	256	275	294	313	313	40	30	29	14	9	78.5	25	27
200M–□ F	189	34	57	80	103	126	149	172	195	218	241	264	287	310	333	356	379	379	43	32	30.5	1405	9	92.5	26	35
300M– □F	208	42	70	98	126	154	182	210	238	266	294	322	350	378	406	434	462	462	53	48	37.5	13.5	11	99	30	40
400M– □F	243	57	84	119	154	189	224	259	294	329	284	399	434	469	504	539	574	574	68	67	52	18.5	18	112	38	50

Dimension Manifold for 4A series
Model	A	B	C	E	F	G	H	I	J	K	L
Model	A	B	C	E	F	G	H	I	J	K	1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F
100M– F	58	43.2	20	4.2	18.3	19	5	9.9	-0.8	139.4	38	57	76	95	114	133	152	171	190	209	228	247	266	285	304	323
200M– F	61	50.7	21	4.3	22.4	23	6	11.8	1.2	170	46	69	92	115	138	161	184	207	230	253	276	299	322	345	368	391
300M– F	75	64.8	26	4.5	27.3	27	6	13.4	2.5	188.8	54	82	110	138	166	194	222	250	278	306	334	362	390	418	446	474
400M– F	104	94.5	32	5.5	34.3	31.5	7	18.4	5	221.8	71	98	133	168	203	238	173	308	343	378	413	448	483	518	553	688

Model	m	L																Q	R	S	T	U	V	W	X	Y
Model		1F	2F	3F	4F	5F	6F	7F	8F	9F	10F	11F	12F	13F	14F	15F	16F	Q	R	S	T	U	V	W	X	Y
100M– □F	154.4	28	47	66	85	104	123	142	161	180	199	218	237	256	275	294	313	313	40	30	29	14	9	78.5	25	27
200M–□ F	189	34	57	80	103	126	149	172	195	218	241	264	287	310	333	356	379	379	43	32	30.5	1405	9	92.5	26	35
300M– □F	208	42	70	98	126	154	182	210	238	266	294	322	350	378	406	434	462	462	53	48	37.5	13.5	11	99	30	40
400M– □F	243	57	84	119	154	189	224	259	294	329	284	399	434	469	504	539	574	574	68	67	52	18.5	18	112	38	50
