Order code |
|||
|
AS |
2000 |
– |
02 |
|
Series code |
Valve body 2000 3000 4000 |
Port size 02:1/4" 03:3/8" 04:1/2" |
|
|
Specification |
||||
|
Model |
AS2000-02 |
AS3000-03 |
AS4000-04 |
|
|
Free flow rate |
Flow rate (l/min) |
340 |
810 |
1670 |
|
Effective area(mm2) |
5.2 |
12.3 |
25.5 |
|
|
Control flow |
Flow rate (l/min) |
250 |
810 |
1670 |
|
Effective area(mm2) |
– |
12.3 |
25.5 |
|
|
Port size |
1/4" |
3/8" |
1/2" |
|
|
Fluid |
Air(filtered through 40u filter element) |
|||
|
Proof pressure |
0.-10.kgf/cm2 |
|||
|
Ambient & fluid temperature |
0-70oc |
|||
|
Weight(kg) |
||||
|
Main parts material |
Body |
Aluminum alloy |
||
|
Seal |
NBR |
|||
|

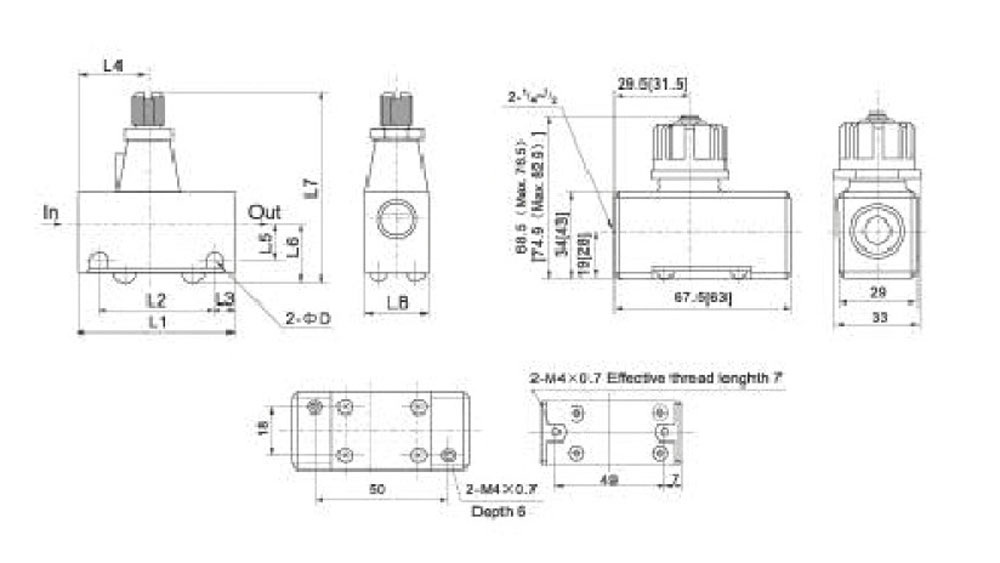

Dimension |
||||||||||
|
Model |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7Max |
L7Min. |
L8 |
D |
|
AS2000-02 |
40 |
60 |
5 |
23 |
11.5 |
17 |
56 |
51.5 |
20 |
4.5 |
|
AS2000-03 |
56 |
45.5 |
5.25 |
25 |
13.2 |
20.7 |
68 |
61 |
26 |
5.5 |
