Order code |
||
|
ASC |
– |
06 |
|
Series code |
Port size 06:1/8" 08:1/4" 10:1/2" 15:1/ |
|
|
Specification |
|||||
|
Model |
ASC-06 |
ASC-08 |
ASC-10 |
ASC-15 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Proof pressure |
0.-10kgf/cm2 |
||||
|
Ambient & fluid temperature |
0-70oc |
||||
|
Weight(kg) |
|||||
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
|

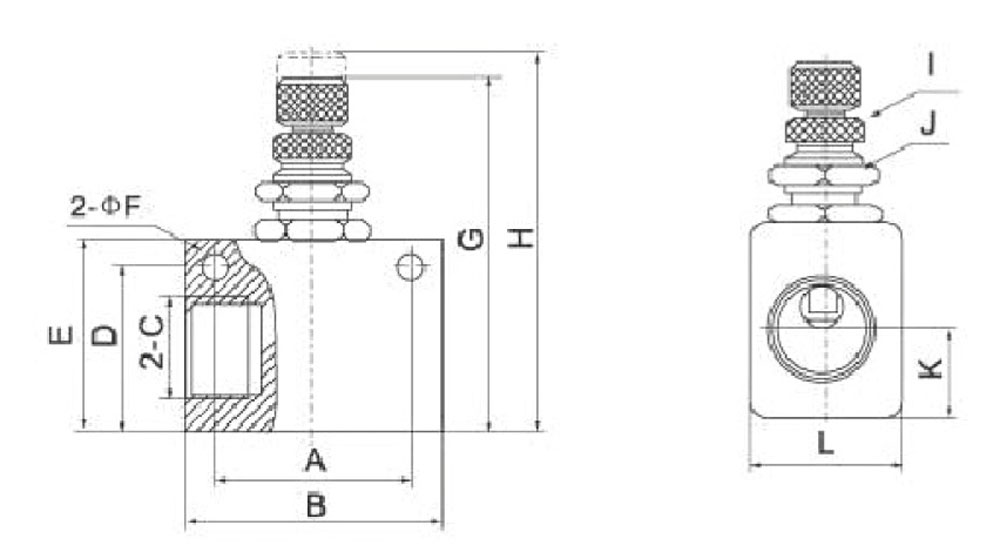

Dimension |
||||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
|
ASC-06 |
22 |
32 |
1/8 |
18 |
23 |
4.3 |
45.7 |
52.3 |
10 |
18 |
|
ASC-08 |
26 |
36 |
1/4 |
22 |
27 |
4.3 |
49.7 |
56.3 |
12 |
18 |
|
ASC-10 |
30 |
40 |
3/8 |
24 |
29 |
4.3 |
51.7 |
58.3 |
13 |
12 |
