Order code |
||
|
SEU |
– |
02 |
|
Series code |
Port size 15:1/2" |
|
|
Specification |
||
|
Model |
SEU-15 |
|
|
Port size |
1/2" |
|
|
Effective area(mm2) |
106 |
|
|
CV Value |
5.59 |
|
|
Fluid |
Air(filtered through 40u filter element) |
|
|
Operating pressure |
0.5-9kgf/cm2 |
|
|
Operating pressure |
15kgf/cm2 |
|
|
Ambient &fluid temperature |
-5-60oc |
|
|
Weight(kg) |
||
|
Main parts material |
Body |
Aluminum alloy |
|
Seal |
NBR |
|
|

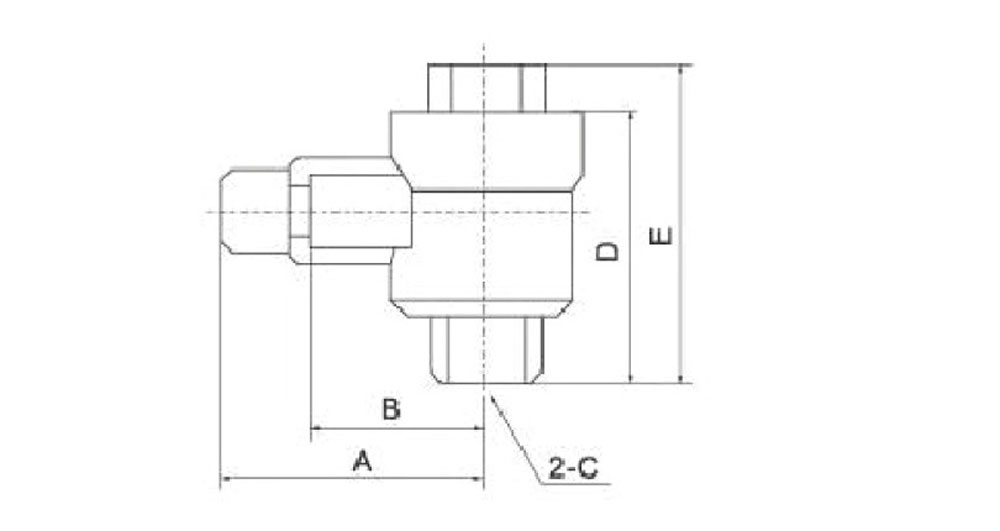

Dimension |
|||||
|
Model |
A |
B |
C |
D |
E |
|
SEU-15 |
69.5 |
47.5 |
1/2" |
66 |
61.5 |
