Order code |
||
|
KV |
– |
06 |
|
Series code |
Port size 06:1/8" 08:1/4" 10:3/8" 15:1/2" 20:3/4" 25:1" |
|
|
specification |
||||||
|
Model |
KV-06 |
KV-08 |
KV-10 |
KV-15 |
KV-20 |
KV-25 |
|
Port size |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
|
Effective area(mm2) |
10 |
10 |
21 |
21 |
47 |
47 |
|
CV Value |
0.56 |
0.56 |
1.17 |
1.17 |
2.6 |
2.6 |
|
Fluid |
Air(filtered through 40u filter element) |
|||||
|
Operating pressure |
0.5-10kgf/cm2 |
|||||
|
Proof pressure |
15kgf/cm2 |
|||||
|
Ambient & fluid temperature |
0-70oc |
|||||
|
Weight(kg) |
||||||
|
Main parts material |
Aluminum alloy |
|||||
|

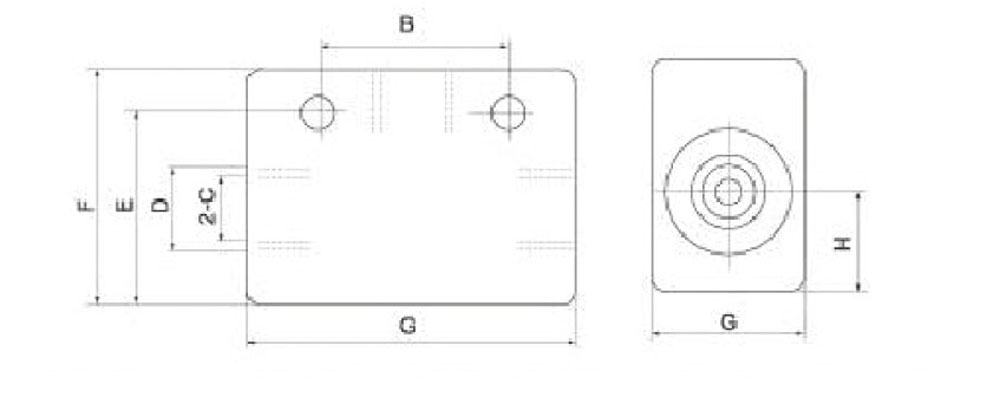

Dimension |
||||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
|
KV-06 |
38 |
22 |
1/8" |
14.5 |
22.6 |
27 |
18 |
11 |
|
KV-08 |
47 |
32 |
1/4" |
18.5 |
27.5 |
35 |
22 |
13 |
|
KV-10 |
61 |
37 |
3/8" |
23.5 |
32.5 |
40 |
27 |
14.5 |
|
KV-15 |
1/2" |
|||||||
|
KV-20 |
3/4" |
|||||||
|
KV-25 |
1" |
|||||||
